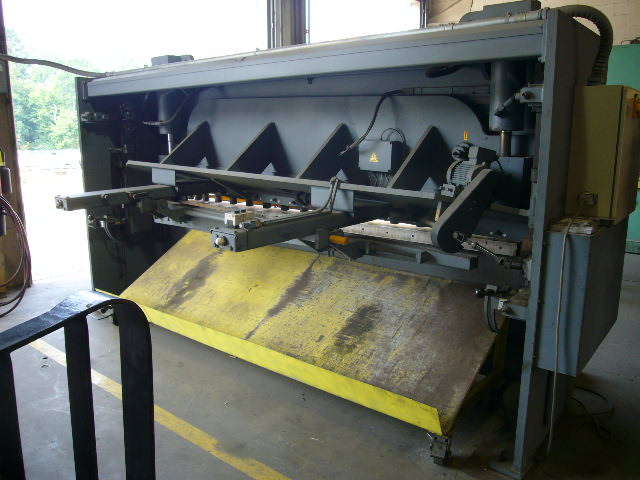

3/8" x 10' Atlantic (Haco) Hydraulic Shear, Model HDS, New 2003
Specifications:

Capacity
Cutting Length
Blade- Electric Rake Adj.
Number Of Holddowns
Speed
Backgauge Range
Main Motor
Rated
Approx Weight
Approx Dimensions:

.375 Mild Steel; 9/32Stainless
120"
1 - 3 Degrees
18
10 - 23 SPM
39" Max.
25 HP, 220/440/3/60
80,000
18,900 Lbs.
159" (L-R) x 85" (F-B) x 87" H
Equipped With:

Electric Rake Control
59” (From Blade) Squaring Arm/ W Scale
39” “Go To” Front Operator Power Backgauge With Dro Readout & Fine Tuning Hand Wheel
Rear, Two Point, Manual Blade Clearance
Four Edge Blades, High Shock Resistant (Never Turned)
Movable Foot Pedal
Shadow Line Lighting
