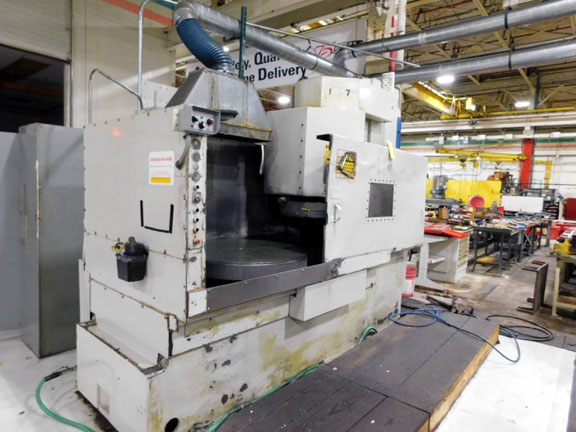

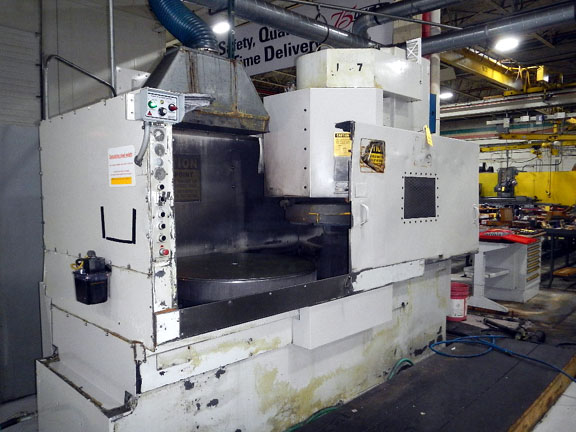

42" BLANCHARD ROTARY SURFACE GRINDER,
MODEL: #22AD-42, New 1988
Specifications:

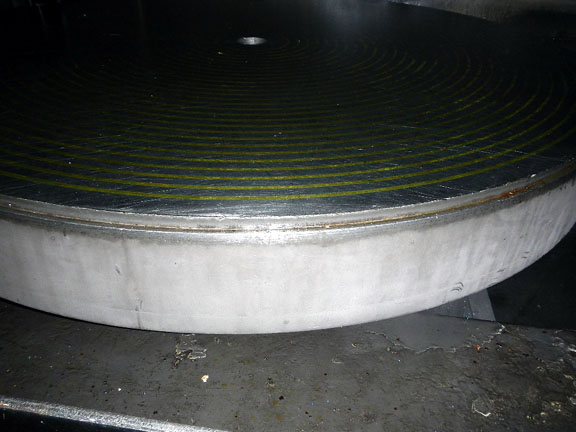

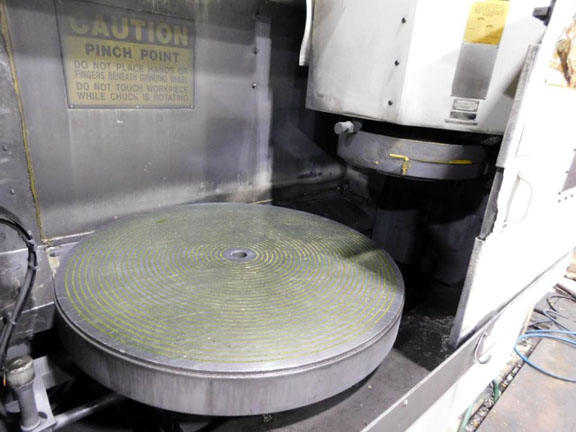

Chuck Diameter (Approx. 3/8" Life):
Swing Inside Guards:
Vertical Range Under New Wheel:
Maximum Load On Chuck:
Grinding Wheel Diameter:
Grinding Wheel Speed:
Chuck Speeds (Variable):
Rapid Traverse Rate
Wheelhead Jog Rate
Coarse Feed Rate
Coarse Feed Mode
Fine Feed Rate
Coarse to Fine Changeover Point
Sparkout Timer

 42"
48"
24"
3,000 Lbs.
22"
720 RPM
6 to 24 RPM
20 IPM
0.100 IPM
0.001 to .100 IPM
Continuous/Impulse
0.001 to .010 IPM
0 to .009"
0.1 to 10 Minutes
Spindle Motor:
Machine Is Wired For
90 Amps Service Required
Approximate Dimensions:
Approximate Weight:     		50 Hp, 3 Phase 60 Hertz, 230/460 Volt
460 Volts
90 Amps Required
124' (L) X 8'4" (W) X 9'7" (H)
16,000 Lbs.
Equipped With:

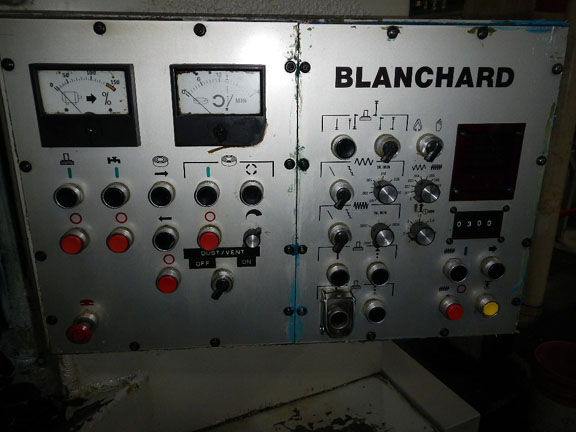

Auto-Cycle Programmable Control W/Digital Display
"A" Series Machine w/All Electric Drives
Hardened And Replaceable Base Ways
Dry Base
Infinitely Variable Nutrifier
"Barnes" MPE-25Coolant System With  Paper Filtration and Magnetic   Separator
Machine Manuals & Electrical Diagrams
