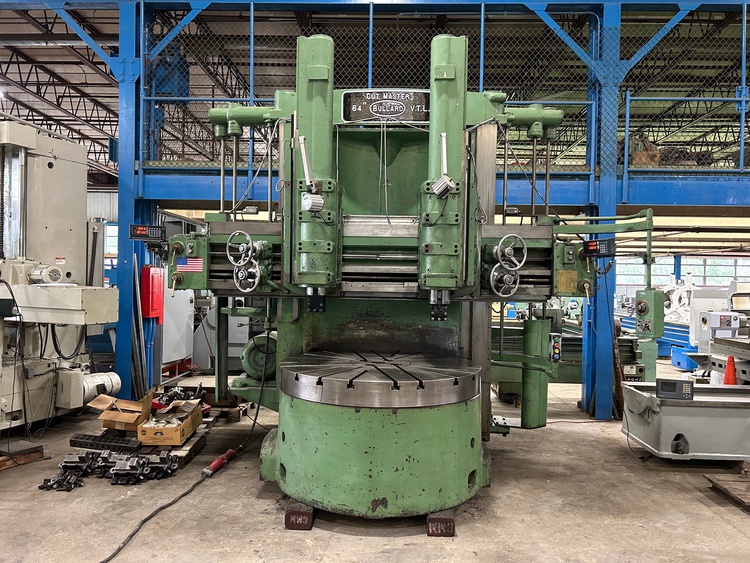

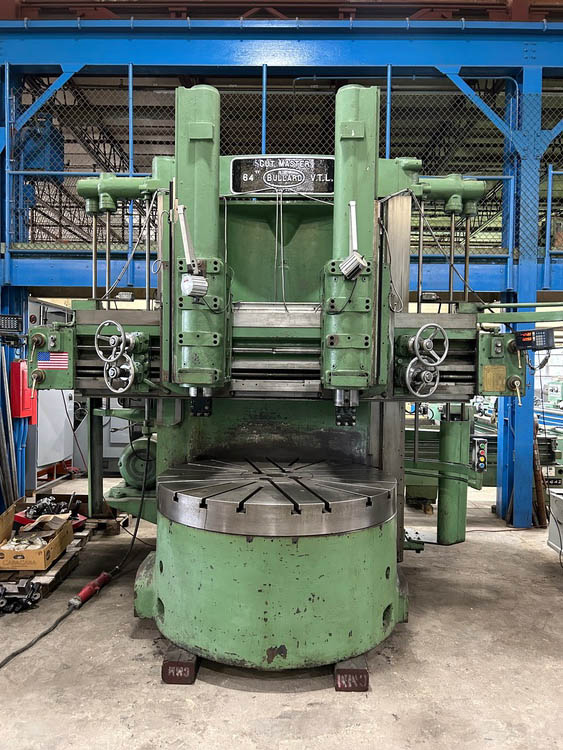

Bullard Dynatrol CNC Vertical Boring Mill
4-Axis, New 1969, Rebuilt & Retrofitted 2005


Specifications:

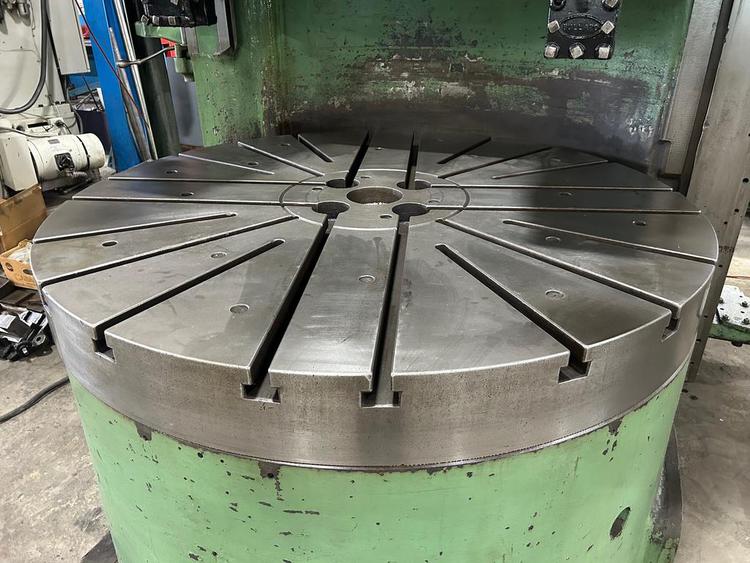

Table Diameter:
Max swing w/side head working:
Swing w/s-head below table top:
Table Speed

Feed and Traverse Speeds

Min hole ram will enter:
Cross rail travel:
Ram head vert travel (ranges):

Ram Head Swivel (right or left):

Side head vertical travel:
Side head horizontal travel:
Approximate Net weight w/cross rail, less heads/motors

Approximate Overall Height:
Approximate Overall Width:
Approximate Overall Depth (without coolant system):

66"
72"
78"
0 - 200 RPM
.001" to  108" / Min.
78"
131"
50
"
30
51-3/8"
58-1/4"
74,000 lbs.
228"
186"
131"
Equipped with:
  • Allen Bradley Series 9 CNC Controls installed brand new in 2005
  • Vertical Hydraulic Chuck

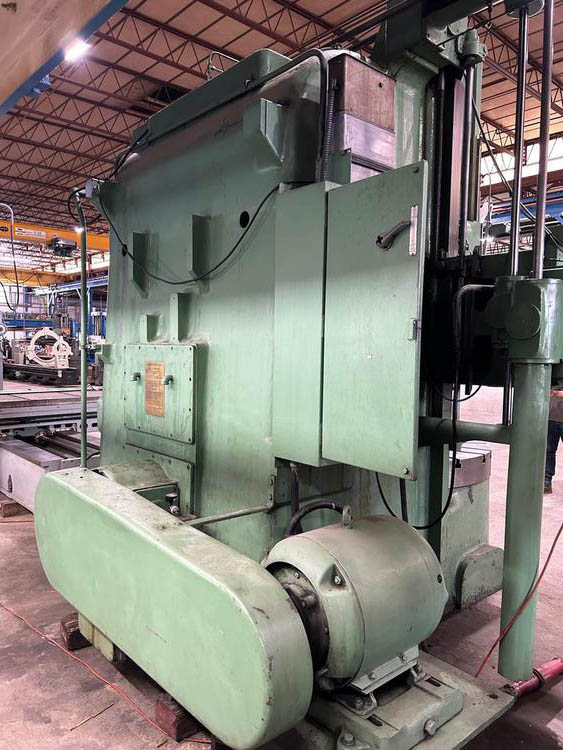

  • 75 HP Main motor

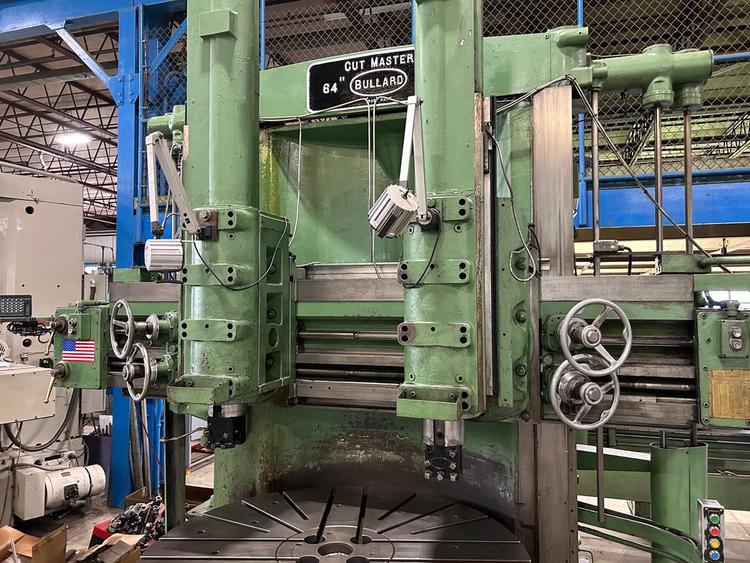

  • Ram Head
  • Side head
  • Smog Hog system for oil mist reduction

Catalogue specifications.   Information is believed to be correct but purchaser is advised to verify information by inspection.
