| Specifications: |
MAXIMUM WATTAGE --------------------------5000
TABLE WIDTH ---------------------------------6'
TABLE LENGTH---------------------------------12'

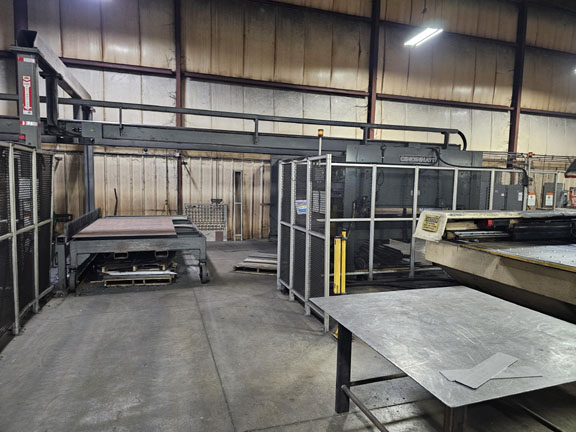

DUAL PALLET SHUTTLE TABLE

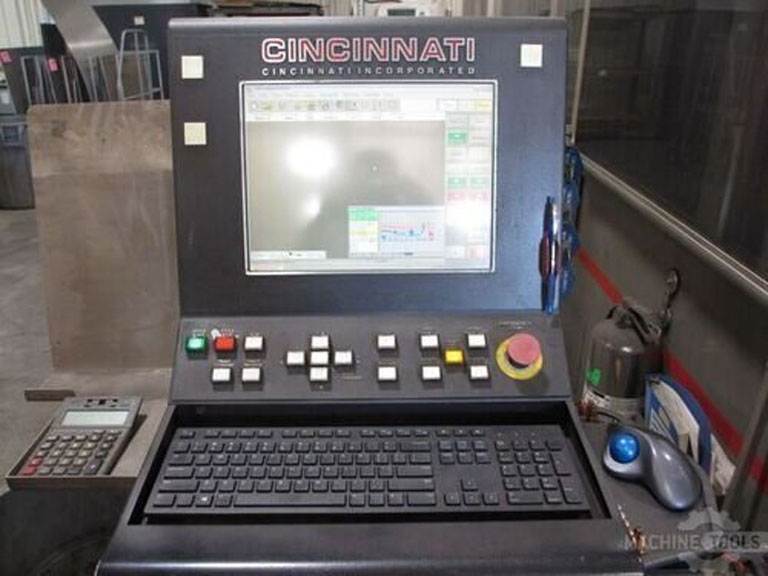

CINCINNATI CONTROL UNIT 19" TOUCH SCREEN
MAX SHEET DIMENSION: 6' X 12'
MAXIMUM TRAVEL SPEED 10,000 IPM
- X AXIS: 157"
- Y AXIS: 78"
- Z AXIS: 10"
- TABLE LOADING CAPACITY 5,500 LBS.
APPROXIMATE DIMENSIONS -------------------411" x 162" x 104"
APPROXIMATE WEIGHT------------------------36,150 LBS. |
| EQUIPPED
WITH: |

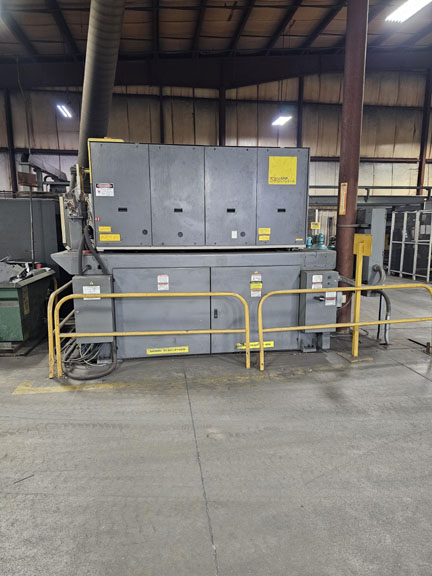

| FANUC C5000 RESONATOR Major
Fanuc rebuild done in 2020 at a cost of $47,000. Approximate hours after rebuild 15,200.
Machine comes with approximately $20,000 spare parts (Nozzels, Optics, etc.)
NOTE: An effort has been
made to assure the above specifications are accurate, however, it is the sole
responsibility of the buyer to confirm the actual model, capacity, attachments,
accessories, extras and condition. We urge buyers to inspect all machinery and equipment
prior to purchase. |
|
|
