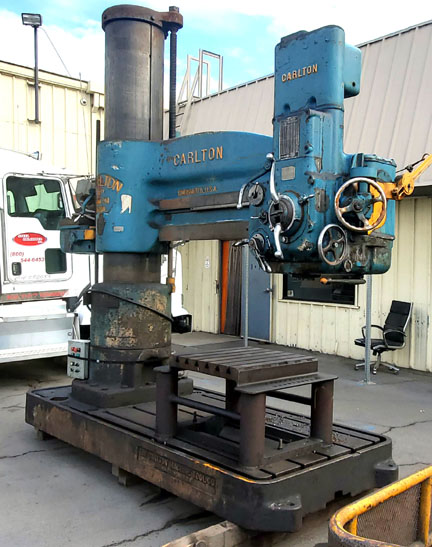

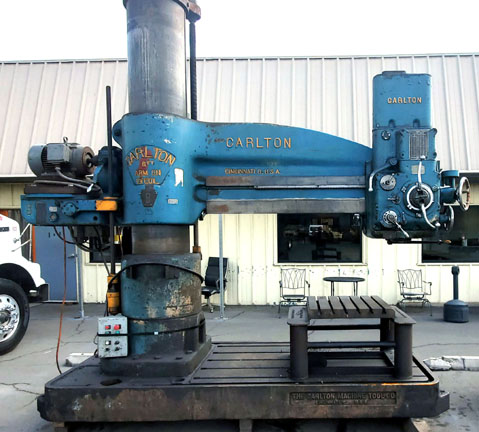

Carlton 4A, 6’ X 19” Radial Drill, Lever Shift

Specifications:
Column Diameter
Arm Length
Face of Column to Center of
Spindle Radius
Spindle to Base
Height of Base
Vertical Travel of Spindle in Head
Bearing of Head on Arm
Bearing of Arm on Column
Height over Head
Height over Column Capacity
Spindle Diameter
Morse Taper in Spindle
Traverse of Arm on Column
Traverse of Head on Arm
Drills to Center of Circle
Swing of Arm
Feeds  (18)
Tap Thread Leads
Spindle Speeds (36)
Electrical
19"
6'
6' to 13-1/4"
27" - 7'-1 3/4"
1'-2" - 6'6"
10"
20"
23-1/4"
38"
12'2"
11'9"
4"
#6
3'-7"
4'-10-3/4"
12'
10'6"
.004 - .125
8, 11.5, 14, 18
10 - 1000 RPM
15 HP, 220/440
Equipped with
Power Clamping of Head and Arm
Power Rapid Traverse to Head
Power Elevation
Drill is equipped with lever shift controls and t-slotted standard base
T-Slotted Table
NOTE: An effort has been made to assure the above specifications are accurate, however, it is the sole responsibility of the buyer to confirm the actual model, capacity, attachments, accessories, extras and condition. We urge buyers to inspect all machinery and equipment prior to purchase
