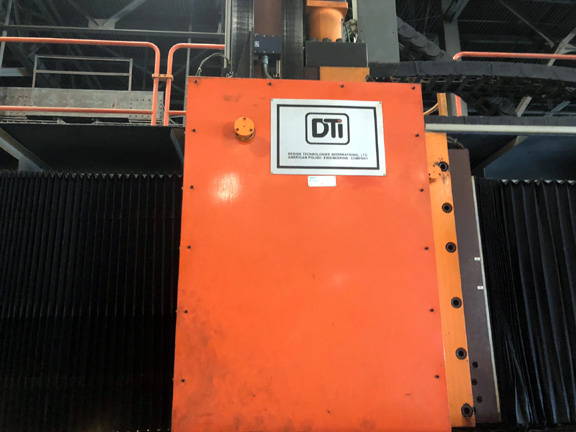

DTI Hogger II Twin Ram Vertical Boring Mill
New 2007
Specifications:

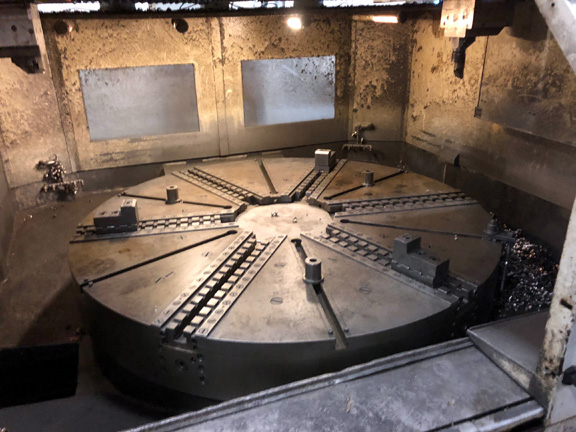

Table Dia.
Swing
Ram Stroke
Table load

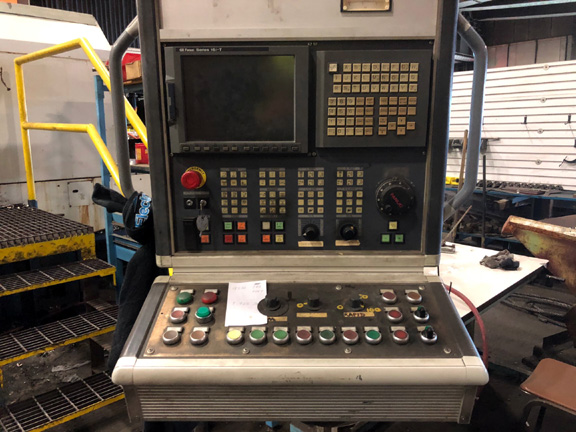

Control
Table Speeds 2e Step
Main Motor Power
Number of ATC Stations
Approx Machine Weight		 100"
112"
35"
33,000 Lbs.
Fanuc 16i-T
180 RPM
160 Hp.
60
180,779 lbs

Note:

Although this Double Column VTL is designed to accept two (2) 60 Tool Changers, it is currently only equipped with one.

Some additional specs are as follows:

  • Max table speed - 180rpm
  • Cross section of the Ram - 300 x 300 mm (12" x 12")
  • Rapid Traverse for X & Y Axis - 7 mtrs/min (280"/min)
  • Diameter of the Ball Screws - 80 mm
  • High Pressure Coolant Through Tool Holders
  • Tool head magazine per ram - 4 stations
  • Tool magazine with changer per ram - 60 tools (only one is currently equipped)
  • Full Enclosure Chip Conveyor
  • Power supply 3 x 460v 3 phase - 60 Hz
  • Tool System - Kennametal KM 80

Installed and Under Power for Inspection

Available for immediate inspection and delivery

Catalogue specifications.   Information is believed to be correct but purchaser is advised to verify information by inspection.
