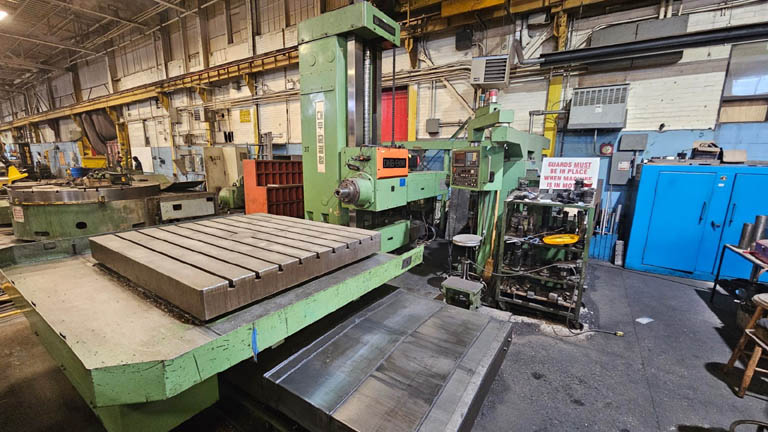

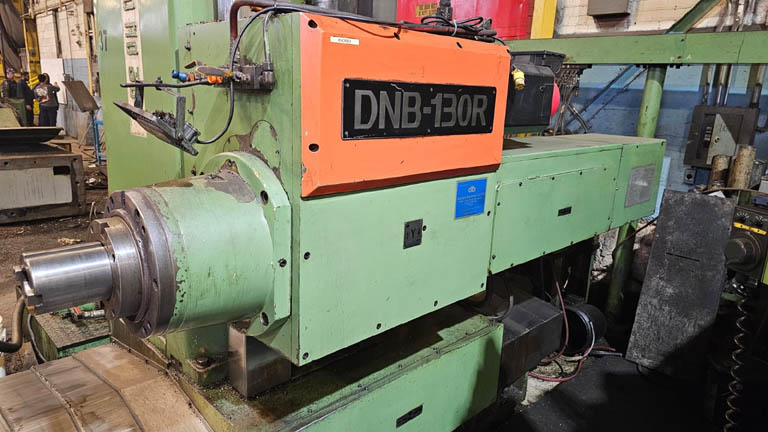

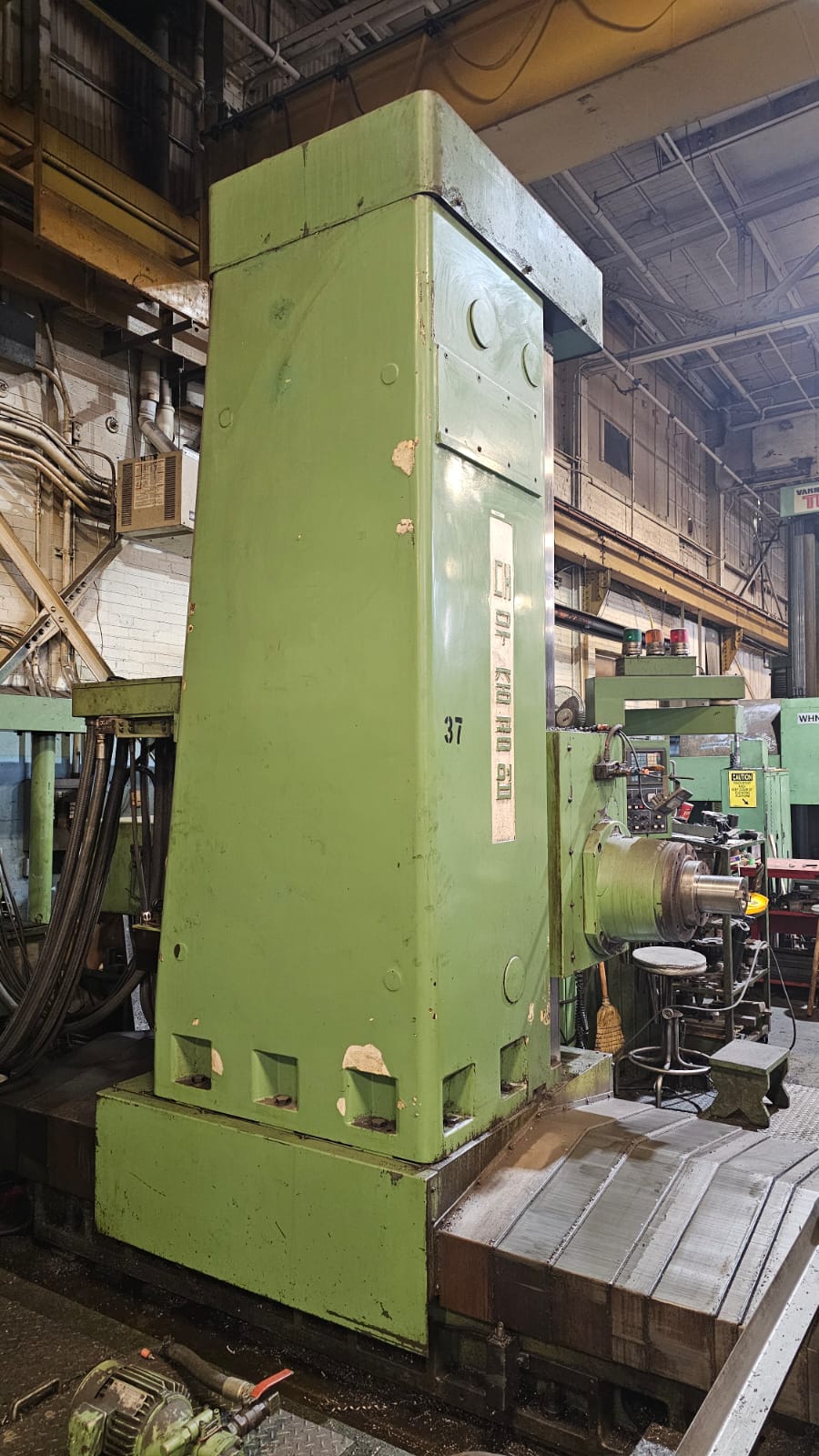

Daewoo DNB-130R CNC Table Type Horizontal Boring Mill
Fanuc CNC Control, Year 1998
Specifications:

Travel distance X-axis: 137.8“
Travel distance Y-axis: 98“
Travel distance Z-axis: 47.2“
Travel distance W-Axis 31.5"
Table load: 26,400 Lbs. (12,000 kg)
Spindle speed (max.): 0 - 1,600 rpm
Table length: 70.9“
Table width: 86.6“

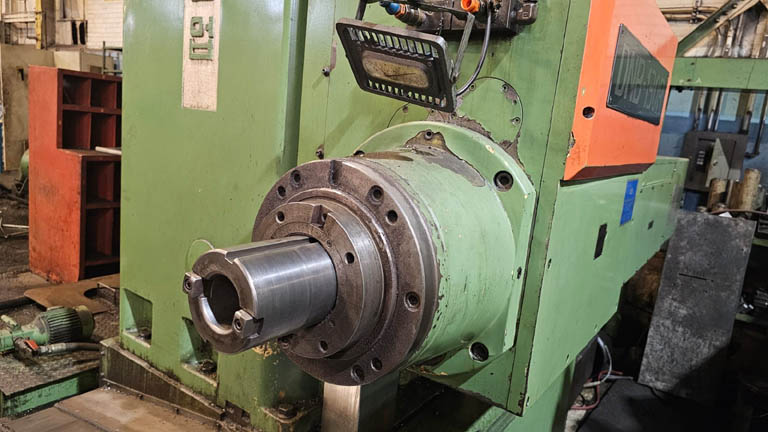

Spindle Diameter 5.1" (130 mm)
Spindle Taper No. ISO 50
Electrics: 380v/3Ph/60hz
Main Motor 34 kW (45 HP)

 80"
70"
43.3"
27.6"
22,000 Lbs. (10,000 kg)
0 - 2,000 rpm
63"
70.8"
5.1" (130 mm)
No. ISO 50
220v/3Ph/60hz
18.5 kW (25 HP)
Equipped With:

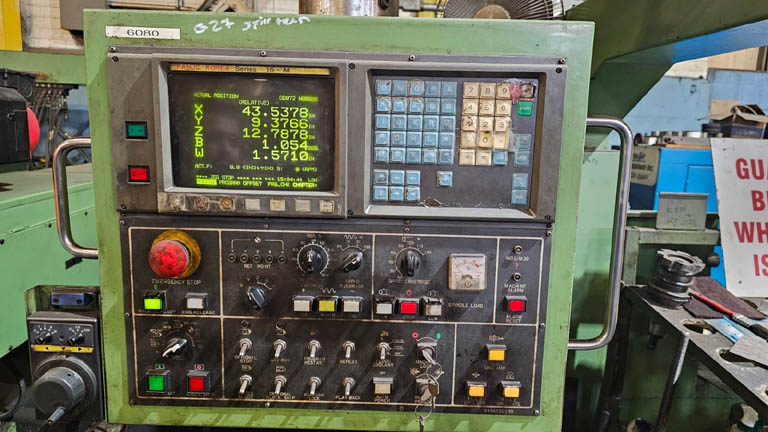

Fanuc 15M CNC Control

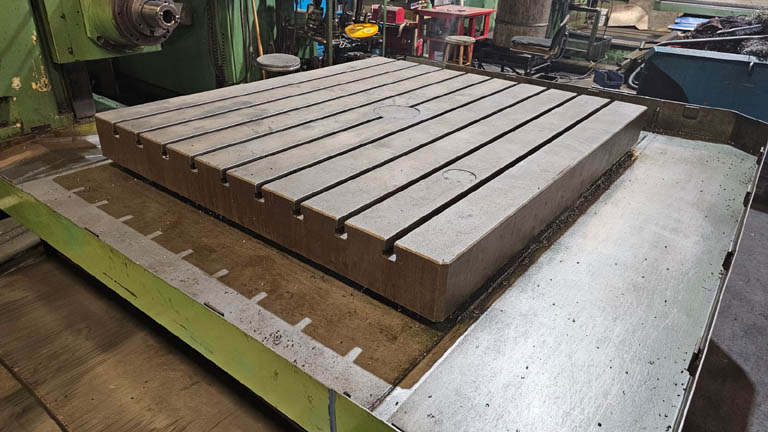

360 T-Slotted Rotary Table
Hand Pendant

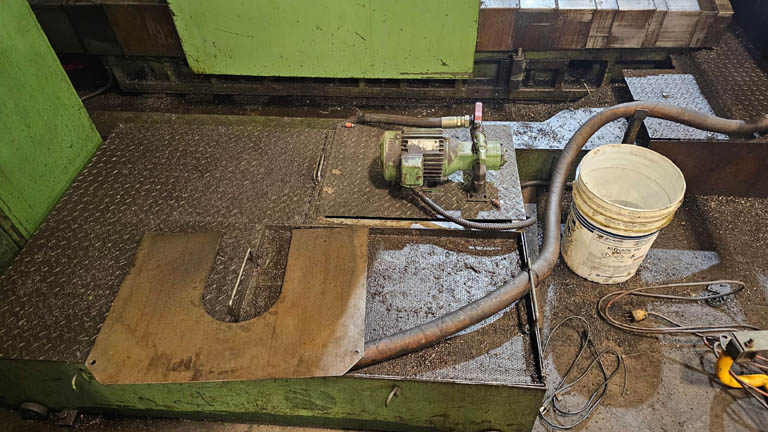

Coolant System
Work Light
Hardened Ways

Technical details subject to error
