DESCRIPTION:
115” X
240” Travels Dual 200AMP Plasma Cutting system with Burny Phantom Controller, Dual
Hypertherm HT2000 200AMP Plasma Power Sources, Brushless DC Servo Drives on Hardened and
Ground Rack & Pinion Drive System All Completely Refurbished with New Controls,
Drives, Gearboxes & Lifters in 2012.
GENERAL SPECIFICATIONS:
Travels: 115" x 240"
No. of Cutting Heads 2
Plasma Power Sources Amperage: 200 Amp
Plasma Power Source Make: Hypertherm
Plasma Power Source Model: HT2000
2- Water Mufflers
Remote Arc Control Boxes
Dual Manual Gas Mix Controls
Plasma Torch Height Controllers: Hypertherm Command (New 2012)

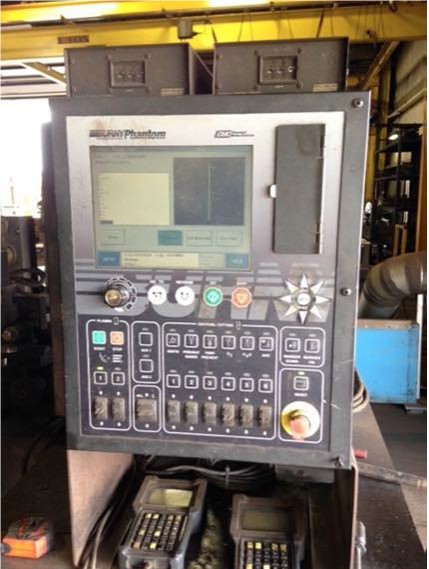

Controller: Burny Phantom (New in 2012)
Remote Pendant Controls
Drive Type: Dual Rack/Pinion Drive Brushless Motors
Power Track: Side Mounted

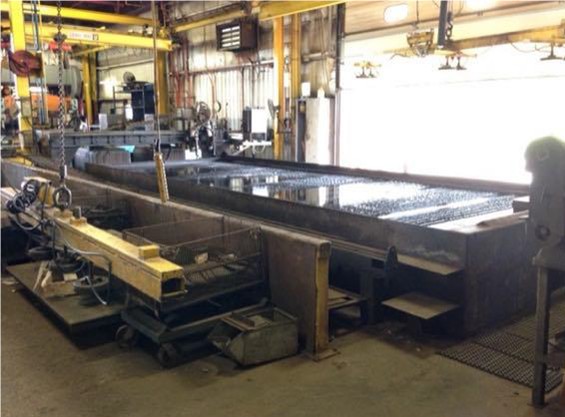

*Table
In Picture Not Included
INCLUDES: Burny Phantom
Controller, Dual Hypertherm HT2000 200AMP Plasma Power Sources, Brushless DC Servo Drives
on Hardened and Ground Rack & Pinion Drive System All Completely Refurbished with New
Controls, Drives, Gearboxes & Lifters in 2012.
***All Prices and
Specifications Subject to Change without Notice***
PRICE: $39,500
ESAB Cutting Systems has developed a revolutionary machine tool that takes
advantage of the latest developments in Precision Plasma to cut parts close to laser
quality at a fraction of the cost
Catalogue
Specifications. Information is believed to be
correct but purchaser is advised to verify information by inspection. |
