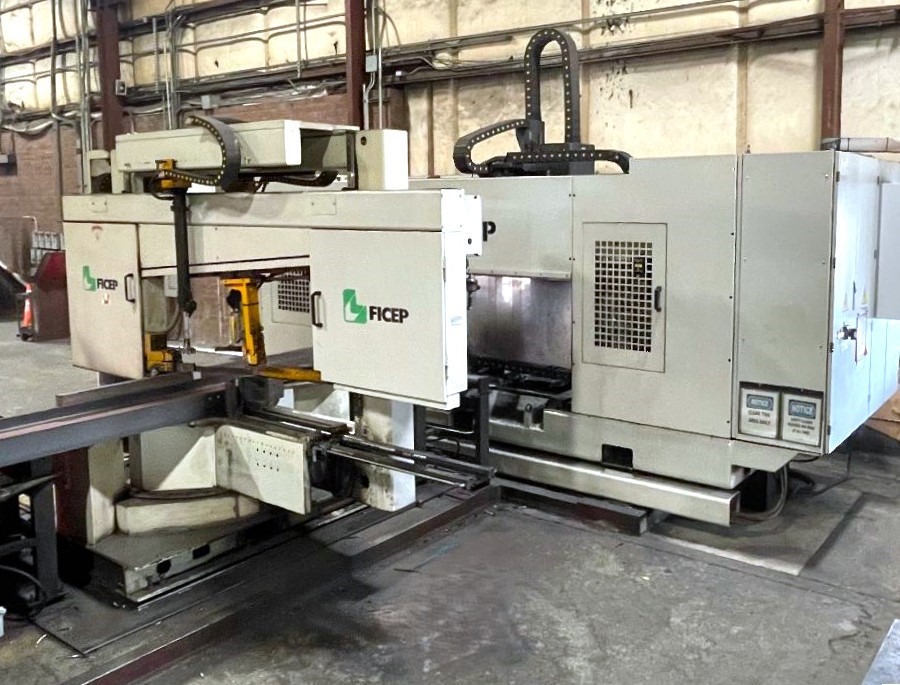

FICEP 1001 DDB, CNC Drilling & Sawing Line for Beams, New 2013
Specifications:

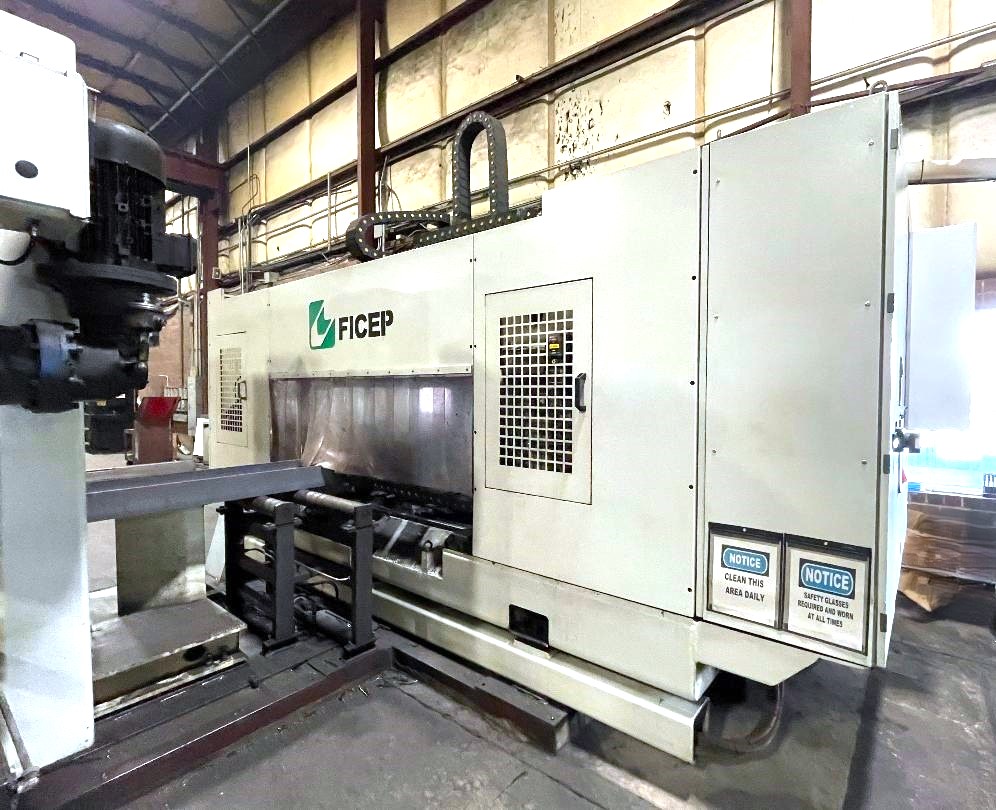

FICEP 1001 DDB DRILL:
No. Of Spindles, Rotating 1
Beam Depth, Min - Max 3-1/8" - 40"
Flange Height, Min - Max 3/8" - 17-3/4"
Maximum Drill Diameter 1-9/16"
Maximum Drill Thickness 4"
Spindle Motor 22 HP

FEATURES:

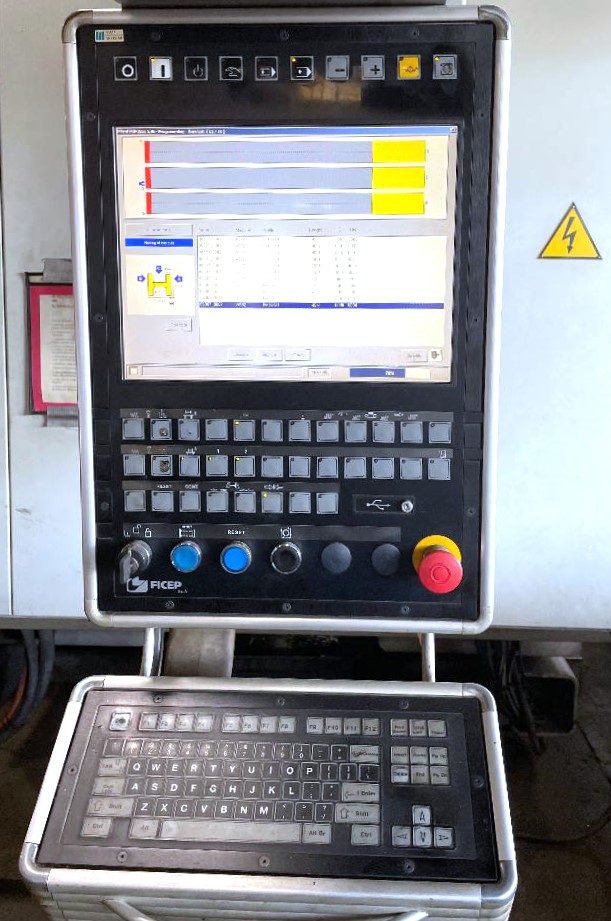

Ficep Pegaso CNC Control
(1) Monospindle 180 Degree Rotary Drilling Spindle For Drilling On 3-Sides
(6) Position Tool Changer
Scribing
Carriage Feed

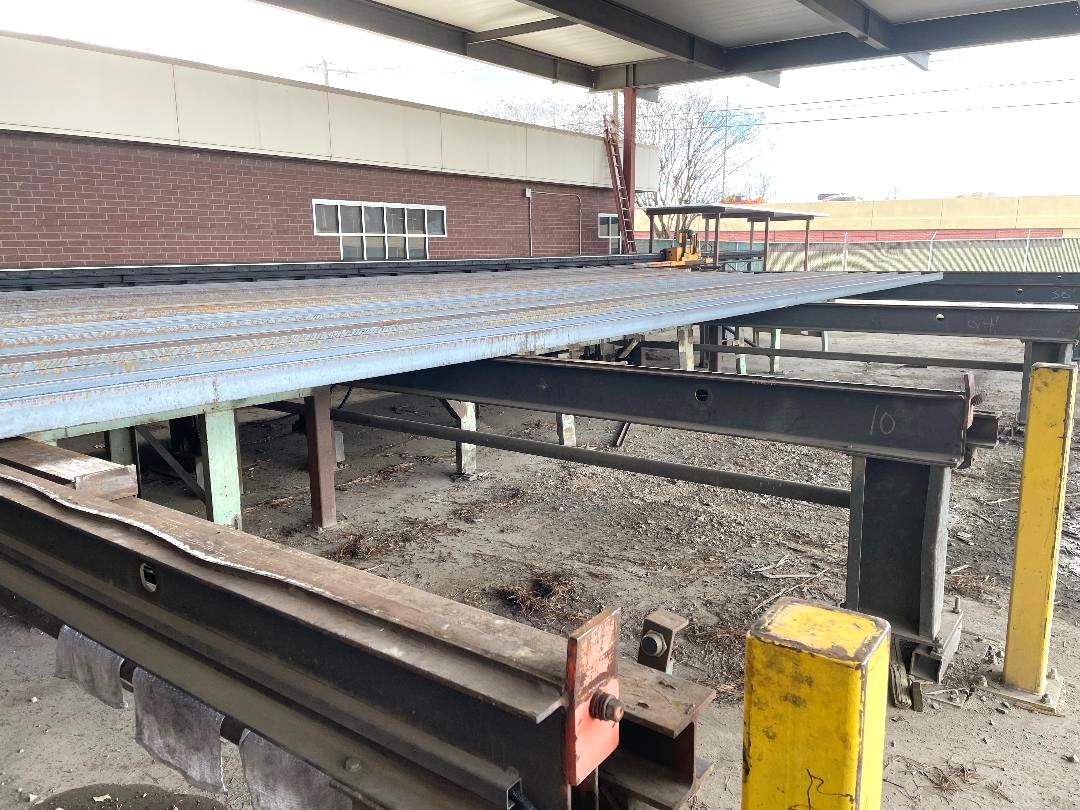

65' Powered Infeed Conveyor With Transfers

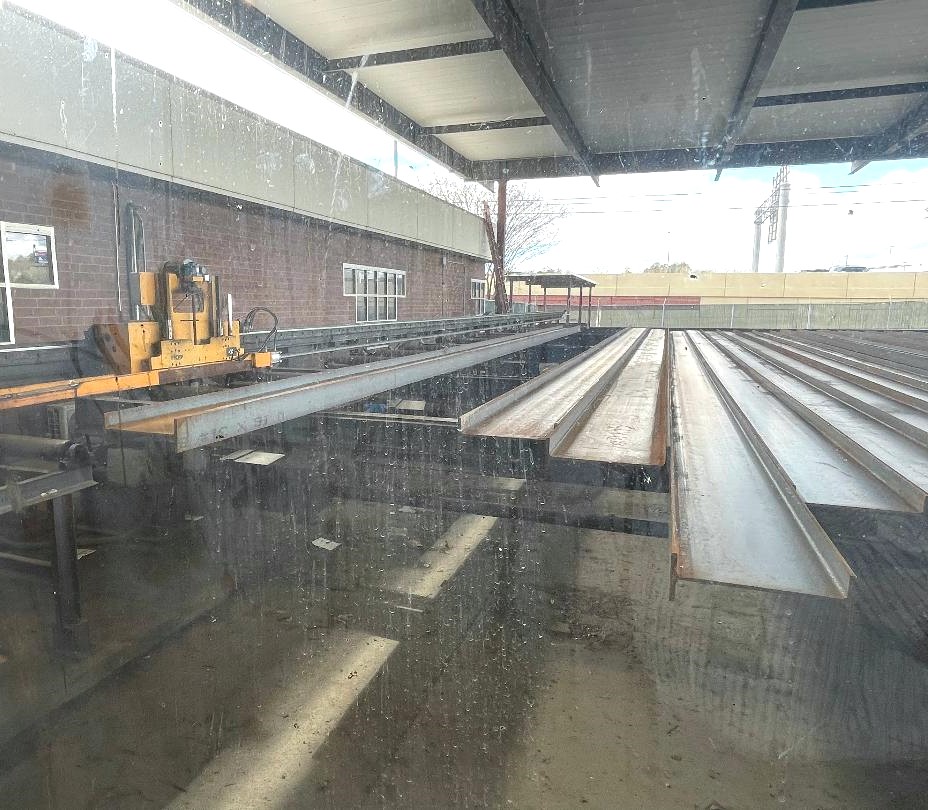

40' Outfeed Powered Conveyor

Spindle Speed
180 - 2500 RPM

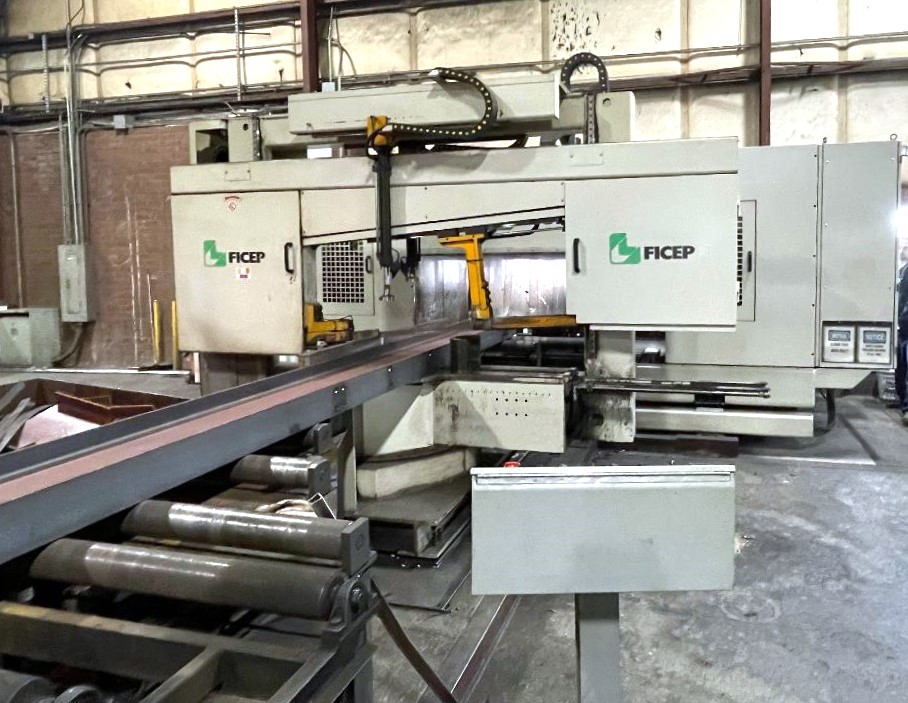

FICEP K100 BAND SAW:
Max. Sawing Capacity at 90° - 40" x 17-3/4"
Sawing Capacity at 45° - 24-3/8" x 17-3/4""
Sawing Capacity at 60° - 13-3/4" x 13-3/4"
Blade Speed 196 - 557 FPM
Motor Power 12 HP

EQUIPPED WITH:
Ficep Pegaso CNC Control
(1) Monospindle 180 Degree Rotary Drilling Spindle For Drilling On 3-Sides
(6) Position Tool Changer
Scribing On 3-Sides
Carriage Feed

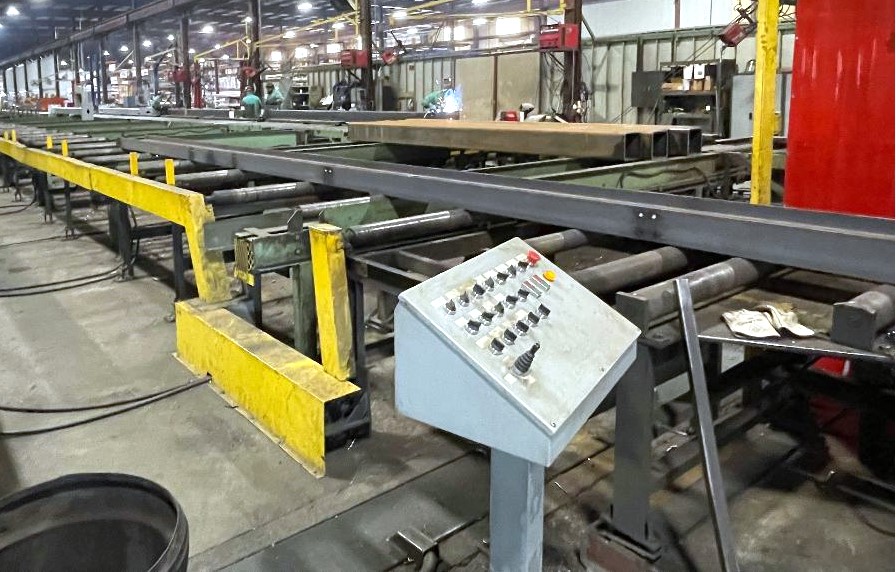

65' Powered Infeed Conveyor With Transfers
40' Outfeed Powered Conveyor

NOTES:
Inspect In Plant Under Power
