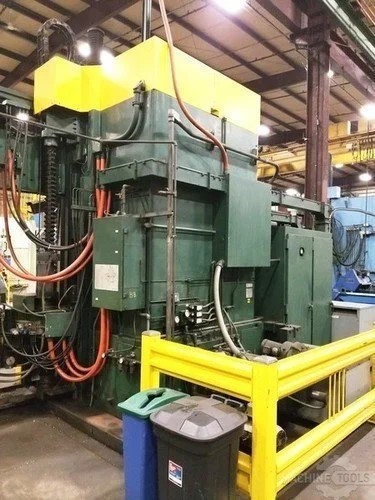

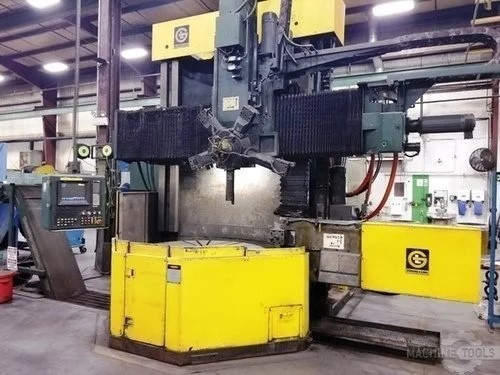

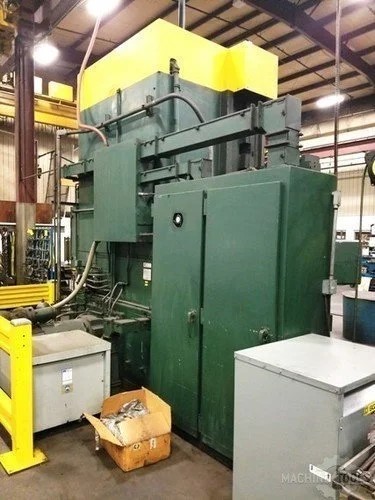

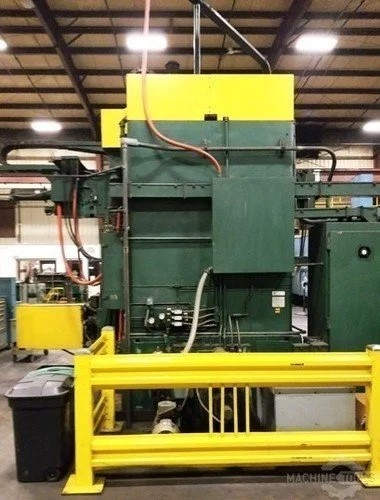

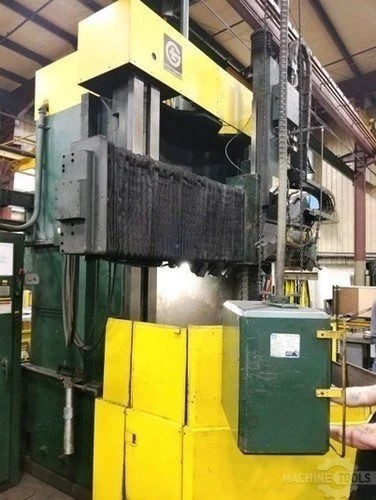

Giddings & Lewis B8 60" CNC Vertical Turret Lathe
|
Giddings & Lewis B8 60" CNC Vertical Turret Lathe
|
| In Excellent Shop Under Power in Wisconsin for Inspections. Complete Rebuild was by G/L Fond Du lac in 1989! Quiet Table & Turret Index in Excellent Condition! Extra High Column Loaded with Tooling + 4 Axis Side Head. |
|
| Specifications: | |
Table Diameter: |

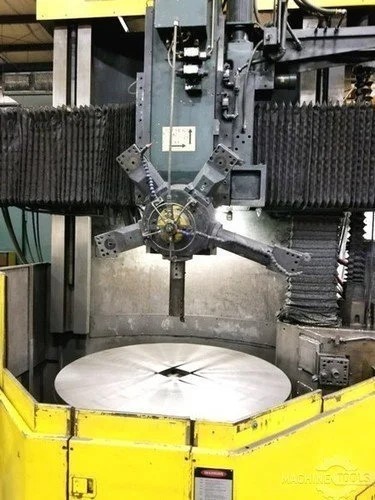

60" 72" (Side Head Down), 66" (With Side Head) 3 - 68 RPM; 12 - 272" 70" 64" (4) Independent Jaws 5 Sided Turret Square Turret |
| Travels: Turret X Axis - Full Rail; Z Axis - 36" Sidehead U Axis - 57.62"; W Axis - 25.5 Feeds: Rapid Traverse (All 4 Axes) 120- IPM Cutting Feed Rate (All 4 Axes) .01" - .100"/REV Ball Screw Size (All 4 Axes) - 3" Dia. Electrics - 460/3/60 Drive Motor - 60hp CNC Control - Fanuc 11TTF 4 Axis Simultaneous Control, |
|

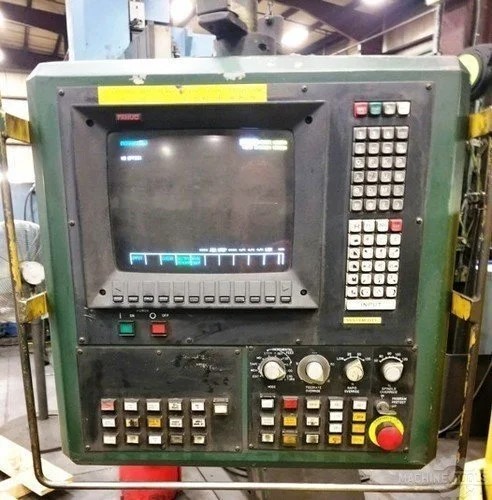

| Equipped with: Fanuc 11-TT-F, 4-Axis Conversational FAPT CNC Control - 1989 Pendant Mount Trabon Lube System Hardened And Ground Ways Enductosyn Scales Chip Conveyor Accuracies - .0005"/Ft - .001" Full Stroke; Repeatability .0003" All Fanuc Control & Electronics Catalogue specifications. Information is believed to be correct but purchaser is advised to verify information by inspection. |
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
