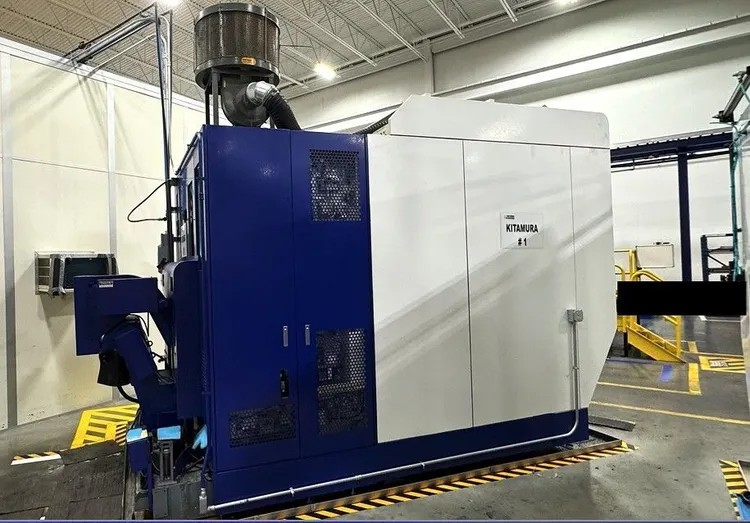

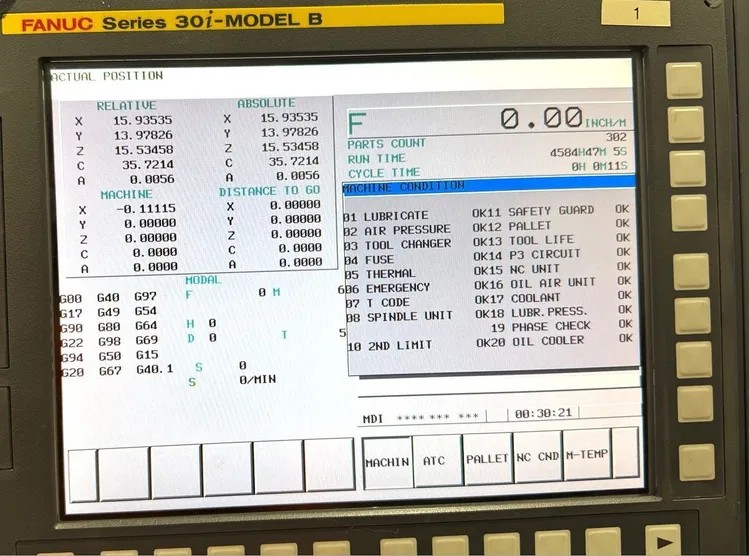

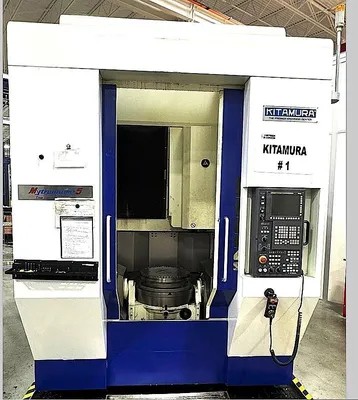

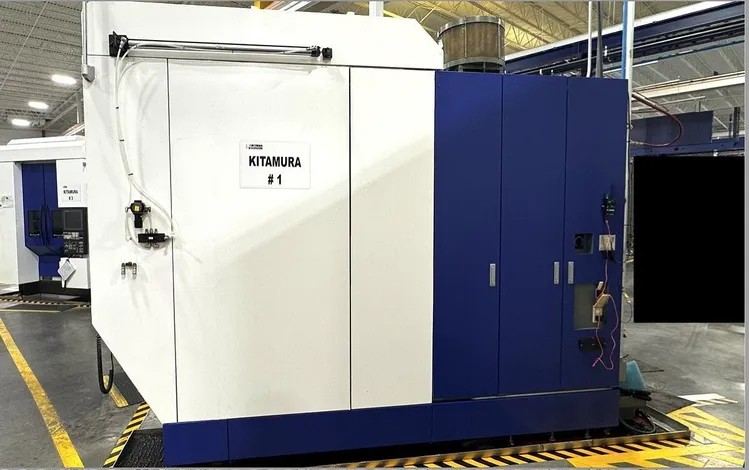

Kitamura My-Trunnion 5, 5-Axis Machining Center w/Fanuc 16i-MB Control & 100 Pos ATC
New 2006
Machines are located in an Aerospace facility in Northeast US. The plant is re-locating to another state by May 31, 2025 and all CNC machines are offered for sale. All machines undergo regular scheduled preventive maintenance and are in very good condition. Due to the confidential nature of the products manufactured in this facility, visitors are required to show proper identification. The company adheres to rigid safety rules and requires that visitors wear steel toed shoes. Eye & ear protection will be provided as well as hard hats.

Because the plant must be vacated by the end of May, the seller is very motivated to sell these machines. A trusted rigger is available to provide costs for dismantling and loading machines. If requested, they can also quote prices for transportation and re-installation.
Specifications:
Table Size:
Travel (X, Y, Z):
Travel (A, C):
Spindle Taper:
Spindle Speed:
Tool Storage Capacity:
Tool Change Time (T-T/C-C):
Rapid Feed (A, C):
Power Requirement:
Max. X-Axis Feed
Max. Y-Axis Feed
Max. Z-Axis Feed
24.8” round
32” x 29.3” x 19.7”
-120 to +30° / 0 to 360°
NST No. 40
20 to 20,000 RPM
100
2.5 Sec. - /5.0 Sec.
2,000°/min. - 6,000°/Min.
45KVA
1968”/Min.
1968”/Min.
984”/Min.
Some additional specifications are as follows:

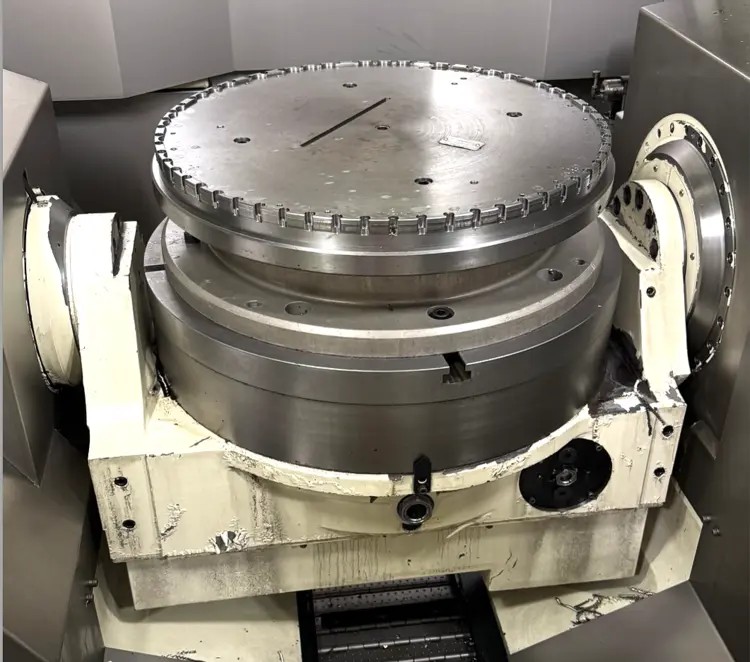

A Axis: 150° (Table Tilt)
C Axis: 360° (Table Rotate)
Max Weight on Table: 880 Lbs
T-Slot: 0.7? X 3 Slots
Table to Spindle Nose: 3.9? – 23.6?
Rapid A: 2000 Degree Per Minute
Rapid C: 6000 Degree Per Minute
Cutting Feed Rate: 984 Inch Per Minute
Max Tool Size: 5.91? X 11.8?
Max Tool Weight: 22 lbs.
Tool Change Time: 1.7 Second

Complete with:
Simultaneous 5 Axis Cutting
20,000 RPM High Precision Spindle
Coolant through Spindle
100 Tools High Speed Tool Changer
Glass Scales on the Axes
PCMCIA Card Slot
128 MB Memory
Spindle Chiller
Spindle Orientation
Helical Interpolation
Rigid Tapping

Absolute Incremental Programming
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank

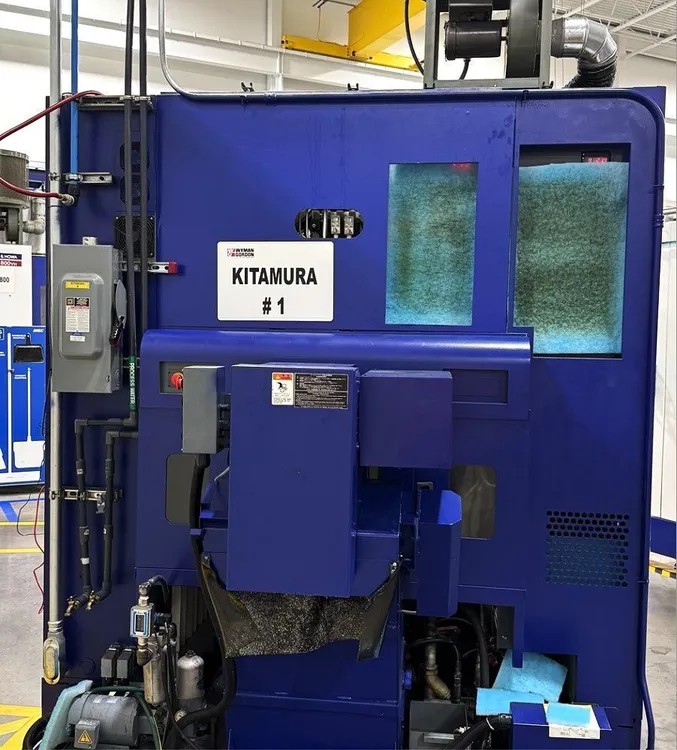

Rear Discharge Chip Conveyor
Work light
Very good working condition
Fully Installed Original Shop and under power for Inspection

Click for Video Click Here to View Video

Catalogue Specifications. Information is believed to be correct but purchaser is advised to verify information by inspection.
