NEW Kuraki AKB11, 4.33” CNC Horizontal Boring Mill

Specifications
Stroke
X axis travel (Table longitudinal)
Y axis travel (Spindle vertical)
Z axis travel (Column cross)
W axis travel (Spindle axial)
Table top ~ spindle center
Table center ~ spindle nose
78.74" (2,000 mm)
59.06" (1,500 mm)
59.06" (1,500 mm)
19.69" 500 mm)
0 ~ 59.06” (0 ~ 1,500mm)
23.62" ~ 82.68” (600mm ~ 2,100mm)
Table
Table work space
Table maximum loading capacity
Table top profile
Table auto indexing
55.12" x 62.99” (1,400mm x 1,600mm)
14,300lbs (6,500 kg)
0.87” (22mm) x 7 T-slots
0.001 degree, (every 90 degree index by locate pin)
Spindle head
Boring spindle diameter
Spindle speed (for every 1 rpm)
Spindle speed change range
Spindle motor power (30min / Cont.)
Spindle torque (30min / Cont.)
Spindle taper
4.33" (110 mm)
5~3,000 min-1 (rpm)
2 steps
35 / 30 HP (26 / 22 kW)
1,588 / 1,344 ft.lbs (2,154 / 1,823 Nm)
7/24 taper No.50
Feeds
Rapid traverse (X, Y, Z axis)
---------------------(W axis)
(X, Y, Z, W axis) 6,000mm/min)
Table revolution
472.44”/min (12m/min)
236.22”/min (6m/min)
0.04~236.22”/min (1 ~ 6,000mm/min)
2.0 min-1(rpm)
ATC
class="MsoNormal" style="margin-left:5.4pt;tab-stops:34.2pt 3.5in 279.0pt">Tool shank
Pull stud
Tool storage capacity
Max. tool diameter
Max. tool length
Max. tool weight
Tool selection
CT50 (BIG PLUS Dual Contact Spindle System)
MAS P50T-1 (45)
40 pc's
4.92" (125mm), 9.45" (240mm)
23.62" (600mm)
55 lbs (25kg)
Shortest way at random
Equipped With:
Spindle cooling device
Chip cover for slide ways
NC indexing table every 0.001 degree (every 90 degree indexing by locate pin)
Coil type chip conveyor (X axis)
Coolant device with lift type chip conveyor
Coolant through spindle interface (for ChipBlaster)
Manual pulse generator
3 color signal light
Work light
Power shut off device
Monolever type jog feed
Rigid Tapping
Scale feed back (X,Y,Z,B)
Maintenance display
Door interlock for NC/EC panel
Foundation bolts & plates
Electrical spare parts
Tool & tool box for reassembly

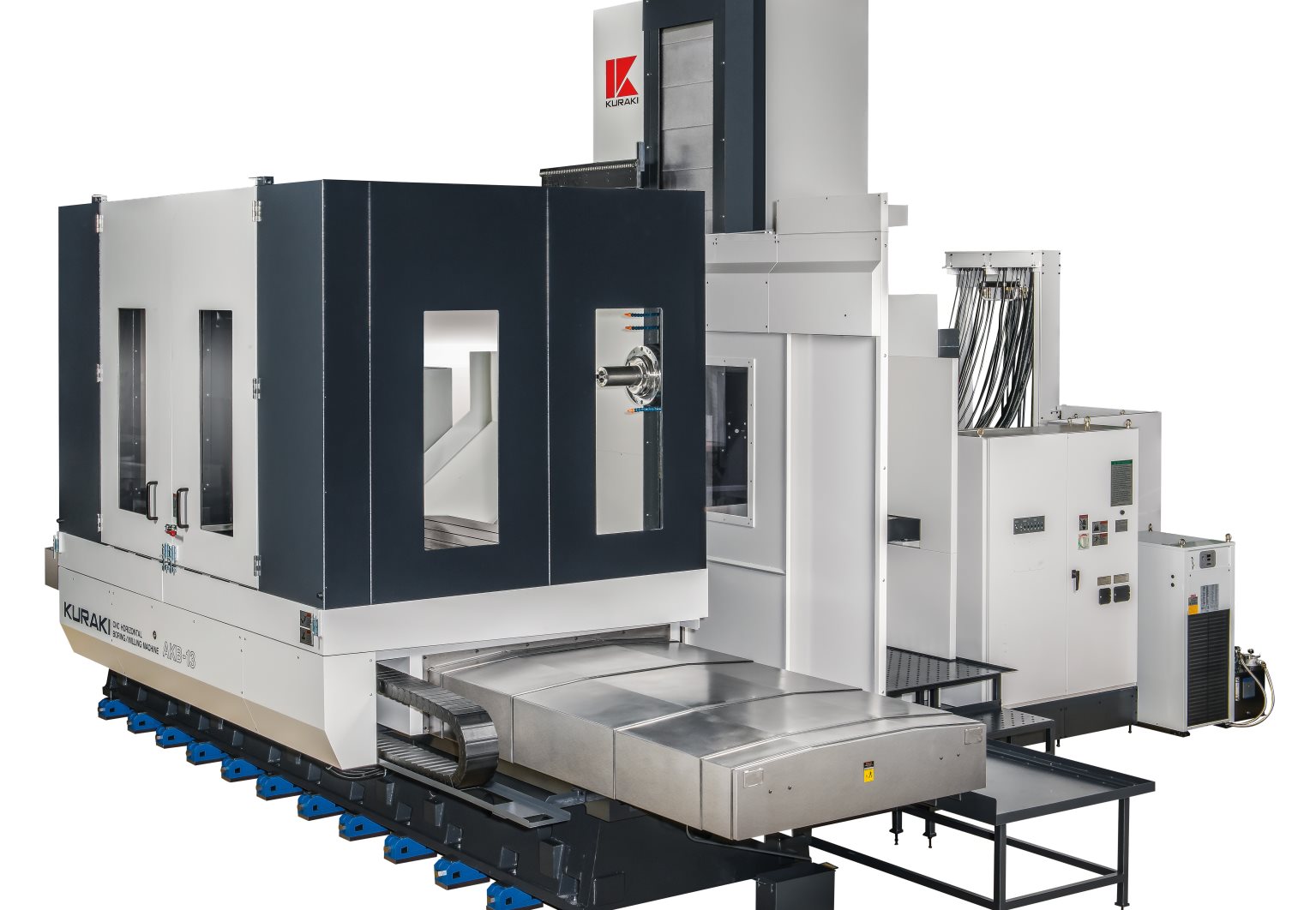

Splash guard type A with hinge door type (Table cover, H=59.05") with proximity switch
Operator side splash guard (simple type) without proximity switch
ATC side splash guard (simple type)
Door interlock for operator side splash guard (simple type)
Fanuc 0i-MF Standard Specifications
[Control Axis]
Controlled axes 5 axes
Simultaneously controlled axes 4 axes
