| Specifications: |
|
- NLIGHT RESENATOR
- CHILLER
- SHUTTLE TABLE
- CONVEYER

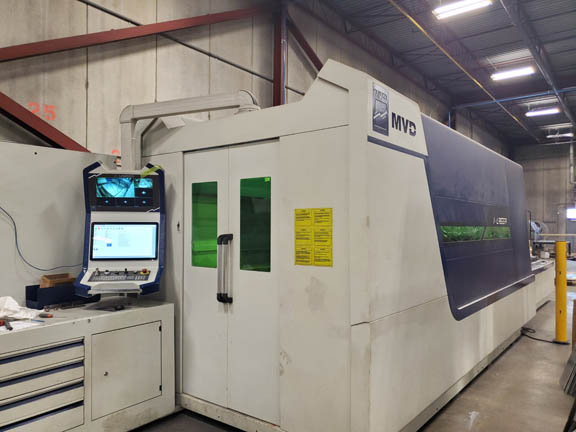

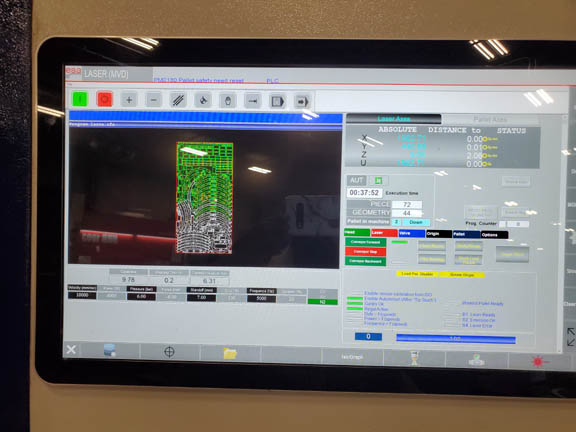

- ESA 660W CNC CONTROL UNIT 19" TOUCH SCREEN
- LIBELLULA NESTING AND CAD/CAM SOFTWARE
- MAX SHEET DIMENSION : 1500MM X 3000MM
- X AXIS: 3000 MM
- Y AXIS: 1500MM
- Z AXIS: 120 MM
- SERVO MOTORIZED, RACK & PINION SLIDE WAY POSITIONING
- AXES SPEED X-Y: 140M / MIN.
- TABLE LOADING CAPACITY 2,500 KGS.
|
| EQUIPPED
WITH: |
|
- DUST COLLECTION
FILTER
- CUTTING WITH: COMPRESSOR AIR , NITROGEN AND OXYGEN POSSIBLE
- AUTO LUBRICATION
- INSIDE AND REAR CAMERA MONITORING
- 575 V TRANSFORMER
- 380V 60 HZ 3 PH |
|
