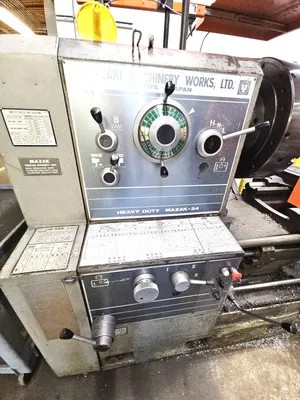

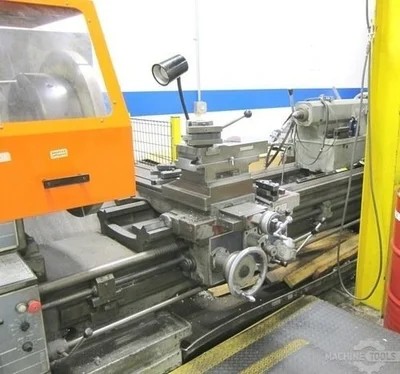

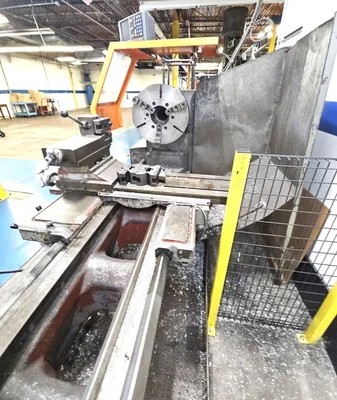

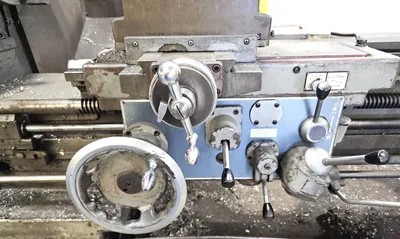

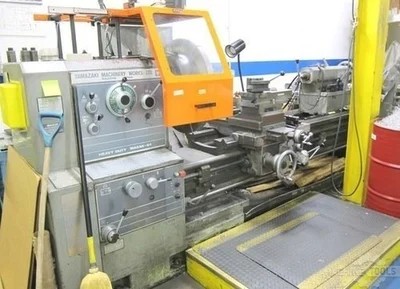

REX 34" x 80" Yamazaki Heavy Duty
Gap Bed Engine Lathe
Specifications:
Swing Over Bed:
Swing Over Cross Slide:
Swing in Gap:
Length of Gap:
Bed Width:
Maximum Distance Between Centers:
Spindle Nose:
Taper Hole in Center Adapter:
Spindle Hole Diameter:
Spindle Speeds: (16)
Feeds - Fine (80)
         - Coarse (30)
Threads - Inch
            - Metric
Cross Slide Travel:
Tailstock Spindle Diameter (No. 6 Morse Taper)
Tailstock Spindle Travel
Motor:
Overall Dimensions (Approx.):
Weight (Est.):
34"
24-3/4"
44-1/2"
12-13/32"
22"
80"
D-1-11
ASA #450 x Morse No. 6
4-1/16"
12 - 1200 RPM
.0024" - .0337"
.0385" -.2604
(40)
(23)
20-3/4
3-15/16"
11-13/16"
20 HP
144" x 60" x 60"
12,500 Lbs.
Equipped With:
Power Rapid Traverse

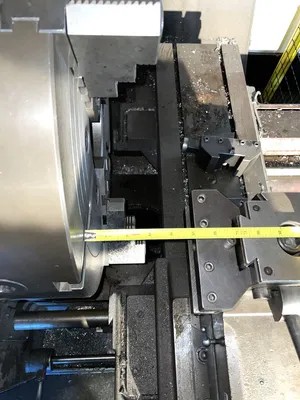

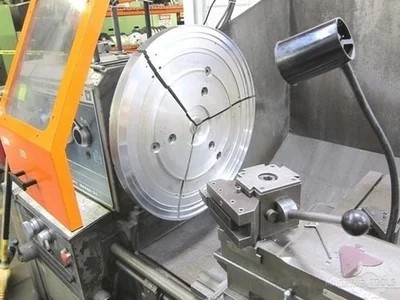

21" 3-Jaw Rohn Self Centering Chuck
Aloris Tool Post
All Available Work Holding

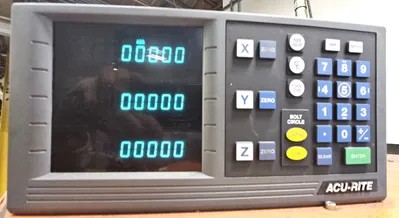

3 Axis DRO
