Okuma LU35 2-Saddle 4-Axis CNC Universal
Turning Center, OSP-U100L Controls, 12/10 pos Dual Turret, New 2002
Specifications:
Swing
Swing Over Saddle
Centers
Control
Max Workpiece diameter
Spindle Speeds (4 Ranges)
Spindle Bore
Carriage travel Upper (X-Axis)
Carriage travel Lower (X-Axis)
Carriage Traverse Upper (Z-Axis)
Carriage Traverse Lower (Z-Axis)
Tailstock Quill diameter
Tailstock Quill travel
Main drive motor
Machine length
Machine width
Machine height
Machine weight            		29.13"
18.90”
33.46"
OSP-U100L
21.65"
14 ~ 3,200 rpm
3.54”
14.96"
9.85"
36.22"
34.45
4.72"
6.69"
40 HP
178"
112"
102"
19,800 lbs
Equipped With:

Morse Taper #5
Chip Conveyor (Right side Discharge)
18” Rohm 3-Jaw Chuck
Conventional 2 - 4-Axis programming steps and language
OSP makes the conversions for the lower turret
Tool Shank Size: Square: 1" and Round 2"
Spindle Nose A2-8: 2"
Rapids, Axis Z/X 787 IPM
Hi-Pressure Coolant System (1,000PSI)
Dual Turret with 12 tool positions on Upper and 10 tool positions on lower
Catalogue Specifications. Information is believed to be correct but purchaser is advised to verify information by inspection.
Okuma LU-35-3.jpg (89608 bytes) Okuma LU-35-4.jpg (58419 bytes)
Okuma LU-35-1.jpg (72076 bytes) Okuma LU-35-2.jpg (47371 bytes)

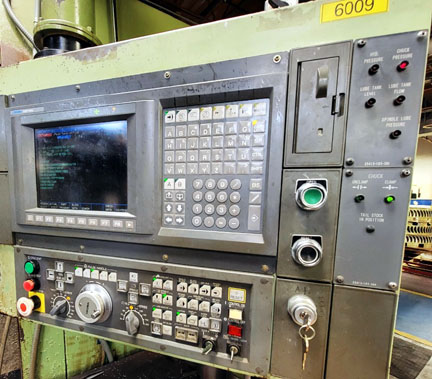

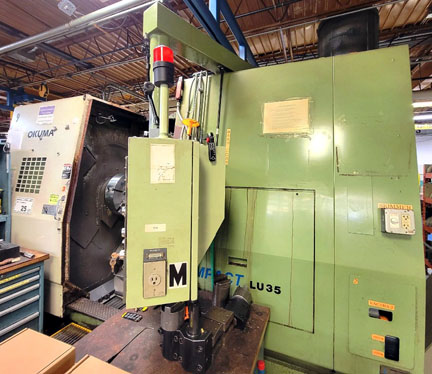

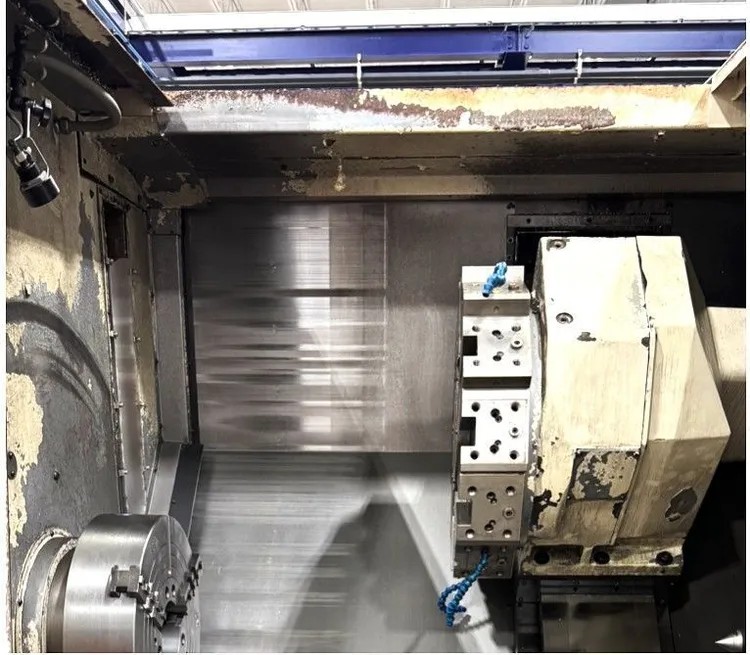

Okuma LU-35-5.jpg (61666 bytes) Okuma LU-35-6.jpg (57140 bytes)
