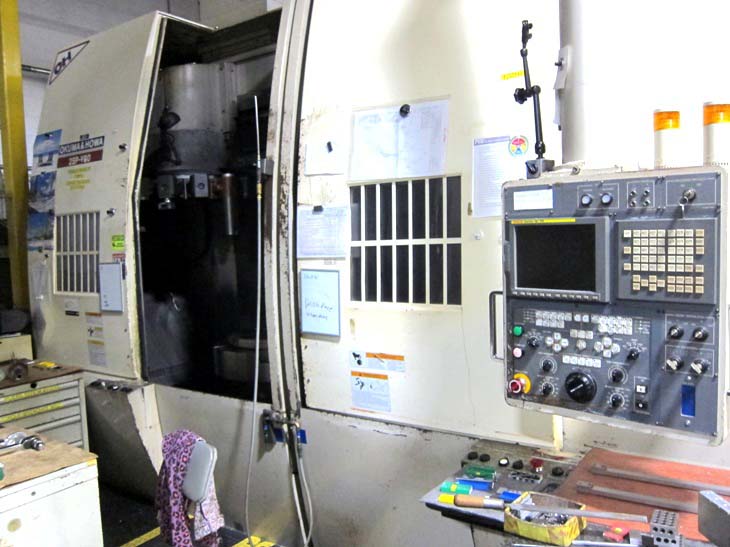

Okuma Howa 2SP-V80 CNC
Twin Spindle VTL

Specifications:
Distance Between Spindles
Table Diameter
Max Swing
Max Turning Length
Spindle Center Height From Floor
Spindle Diameter
Spindle Speed (Low)
Spindle Speed (High)
Type Of Turret
Spindle Motors
3-Jaw Chucks Left & Right
X Axis Travel (FANUC a22/3000i AC 4.0 HP):
Z Axis Travel     (FANUC a22/3000iB AC 5.0 HP):
C-Axis Live Tooling
X Axis Thrust Force:
Z Axis Thrust Force:
X Axis Ball Screw Diameter/Pitch:
Z Axis Ball Screw Diameter/Pitch:
X & Z Axis Rapid Traverse Rate:
Feed Rates:
Feed Rate Override:
43.3"
36"
40"
33"
45.3"
7.87"
4 to 16 RPM
13 to 1250 RPM
V12 + V12
40 HP
32"
18.31"
33.07"

2,950 lbs.
3,170 lbs.
1.57"/ 0.47"
1.97"/ 0.47"
630 IPM
0.00001 - 18.18 IPR
0 - 200%
Equipped with:

Fanuc 18i-TB CNC Controls
Cooling System for Ballscrews (to minimize expansion): Forced Oil

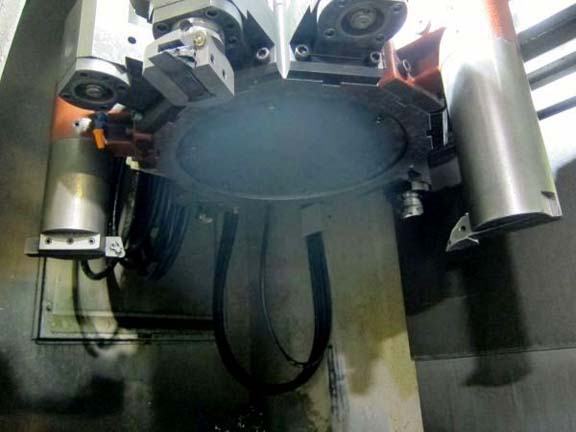

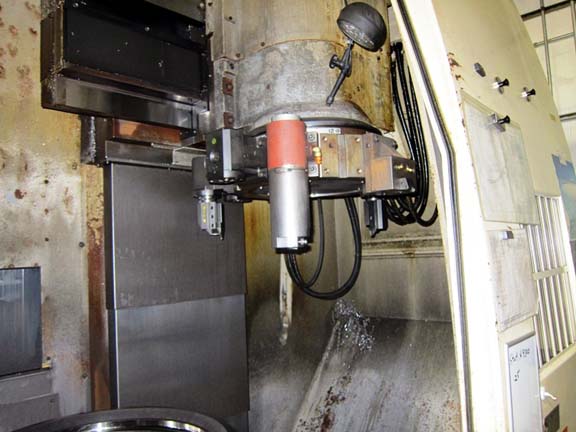

(2) V12 Turrets

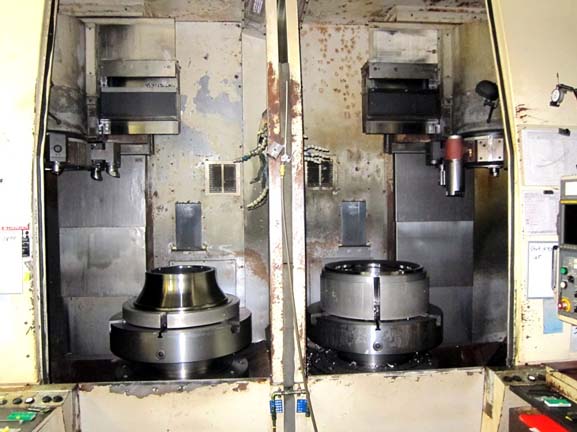

(2) 31.5" Forkhardt 3-Jaw Precision Manual Quick Change Pull-Back Design Chucks Installed on Machine.
   Factory Catalog Shows Easy Wrench Turn Bolt to Lock Down Top Jaws and or Quick Release Jaws for Change Over
(2) Rear Discharge Lift-Up Chip Conveyors Chain Type
(2) Auto Doors Each Side of Machine
Coolant Tanks and all Pumps
(2) QTS Quick Tool Setters are Built in Z-Axis Guarding

NOTE: An effort has been made to assure the above specifications are accurate, however, it is the sole responsibility of the buyer to confirm the actual model, capacity, attachments, accessories, extras and condition. We urge buyers to inspect all machinery and equipment prior to purchase.
