NEW and Available for Immediate Delivery

STARVISION DX 3220 of the DX Series Double Column Machining Center

Travels of 126” X, 78.7” Y by 39.4” Z with 82.7” between the columns.

·

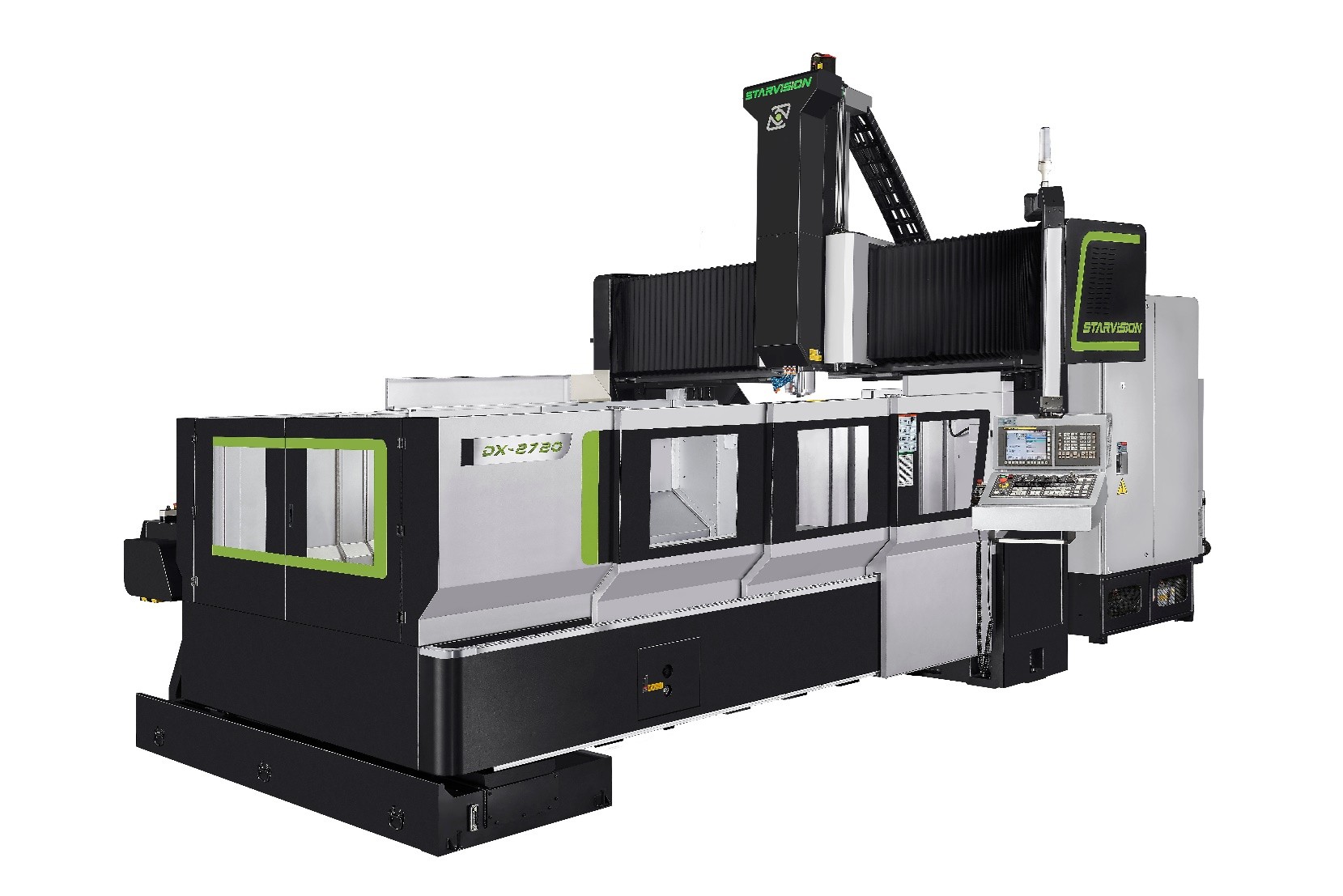

STARVISION DX 3220.jpg (213136 bytes)
Tarvision Bridge
Starvision DX Bridge-mill
Structurally rigid design & construction
Cast Mehanite iron base, table, columns, bridge and headstock ram provide excellent strength and dampening.
Starvision uses FEA (Finite Element Analysis) in the design of their machines for optimum Strength and Performance

The Starvision DX3220 double column machine has the following standard specifications:

Specifcations Metric English
Table Size 3,000 x 1,700mm 118” x 67”
T-Slots 22 x 9 x 180mm
Table load 10,000kgs 22,046lbs
X / Y / Z axis travel 3,200 x 2,000 x 1000mm 126 x 78.7 x 39.4”
Spindle nose to table (opt) 150 - 1150mm
Distance between columns 2,100mm
align="center">

Max. workpiece width

 2,050mm 80.7”
Spindle nose taper CAT 50
Spindle Drive 30/37kW

40/50hp
Spindle Speed 6,000rpm


Cutting federate 7,000mm/min

275” / min
Rapid feed on X/Y/Z 24m / 20m / 15m

945 / 787 / 590im
ATC 32 tools std


Guarding Table Guarding (no top)
