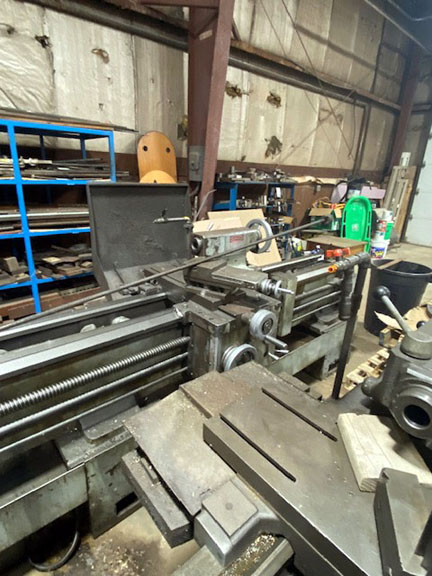

Tarnow Heavy Duty Gap Bed Engine
Lathe
|
| Specifications: | |
| Maximum Distance
Between Centers: Swing Over Bed: Swing Over Cross Slide: Swing in Gap: Length of Gap from Spindle Nose: Bed Width: Spindle Hole Diameter: Spindle Speeds: (16) Threads - Inch (35) Threads - Metric (62) Tailstock Spindle |
96" 20.86" 13" 30" 9.84" 14.86" 2.06" 25 - 1800 RPM 1 to 28 TPI 0.01 – 1.10 mm/Rev No. 6 Morse Taper |
| Equipped with: | |
| 4
Jaw Chuck Steady Rest Inch/Metric Threading |
|
| NOTE: An effort has been made to assure the above specifications are accurate, however, it is the sole responsibility of the buyer to confirm the actual model, capacity, attachments, accessories, extras and condition. We urge buyers to inspect all machinery and equipment prior to purchase | |
 |
 |
 |
 |
 |
|
