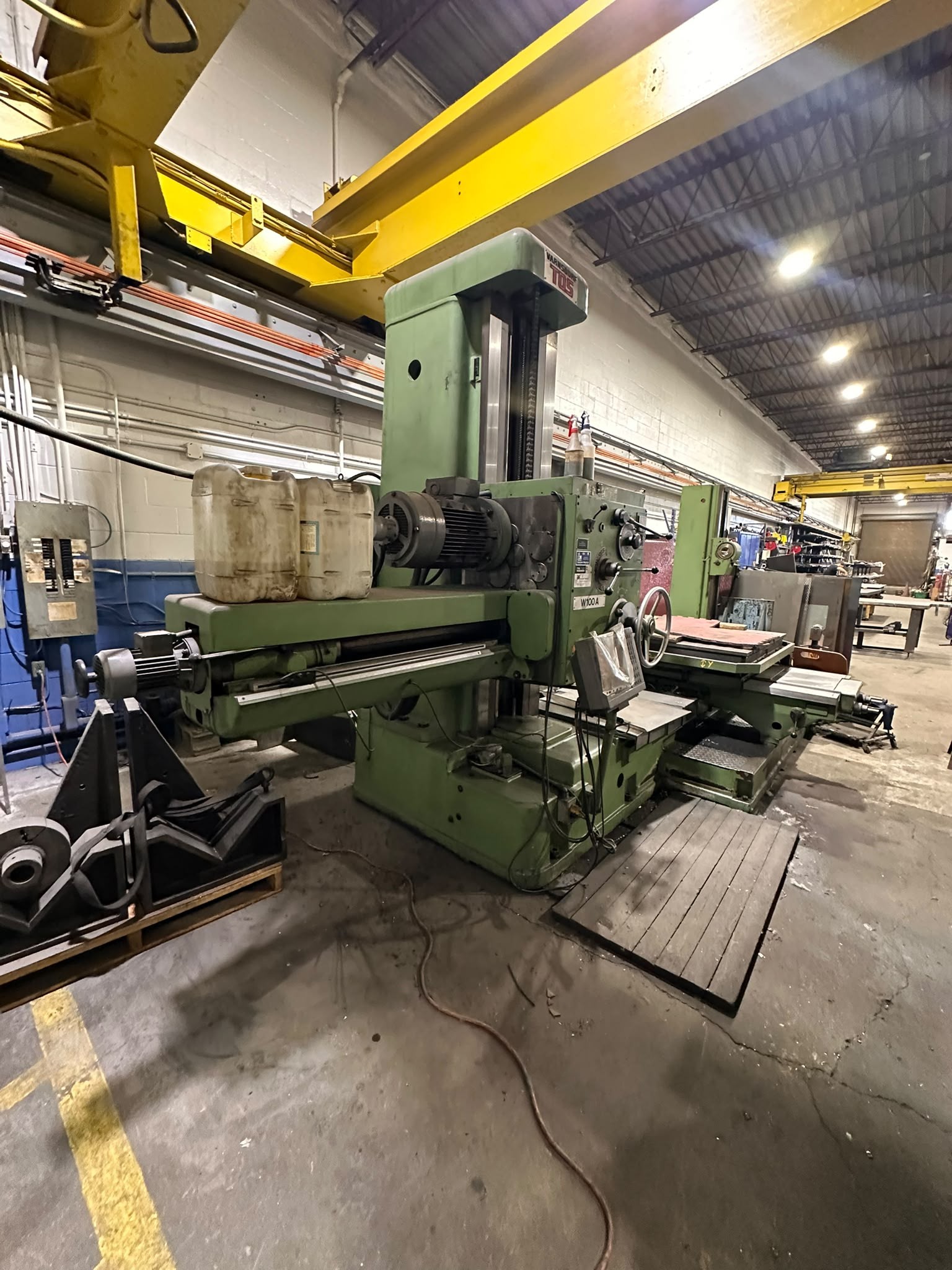

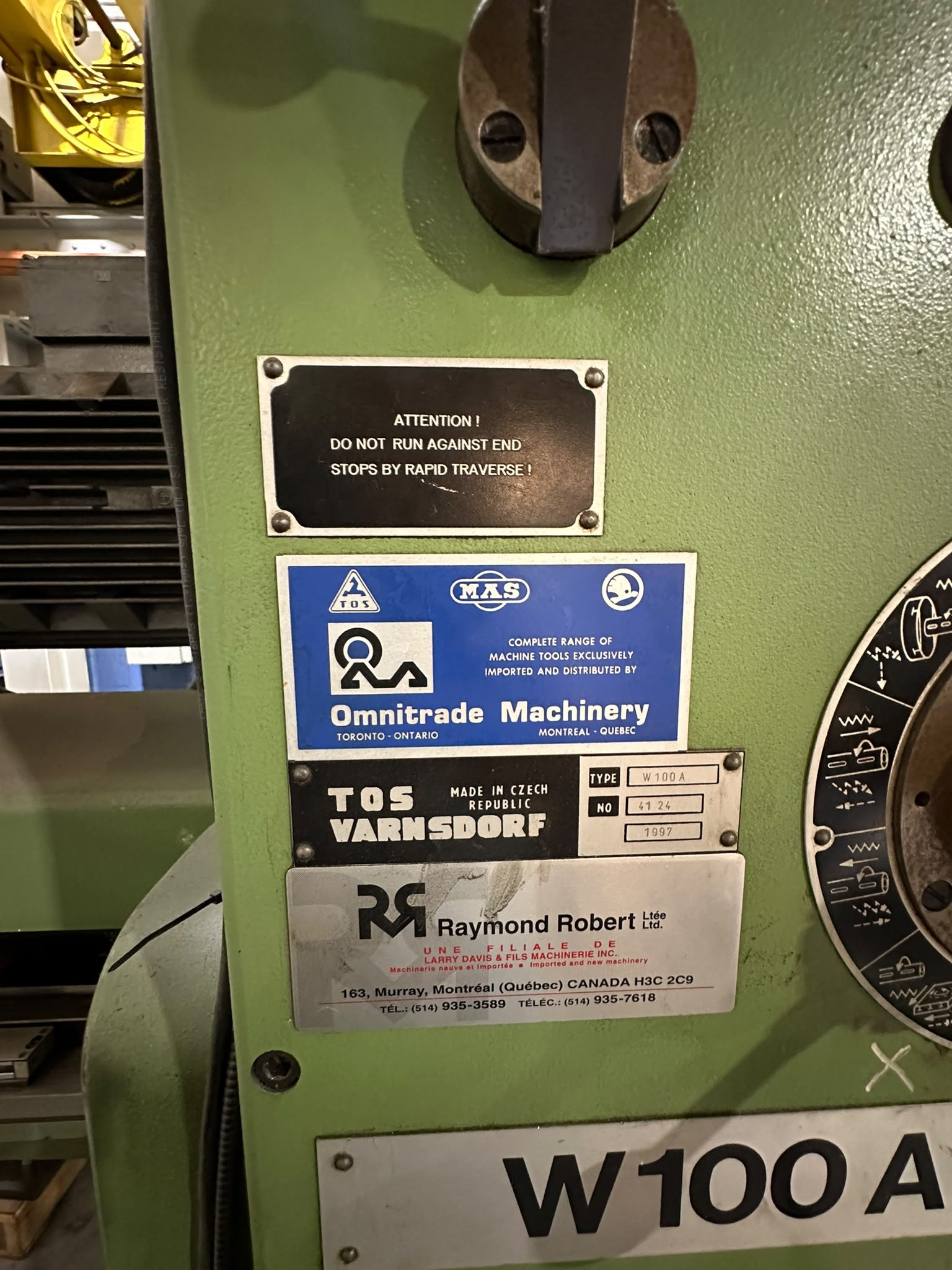

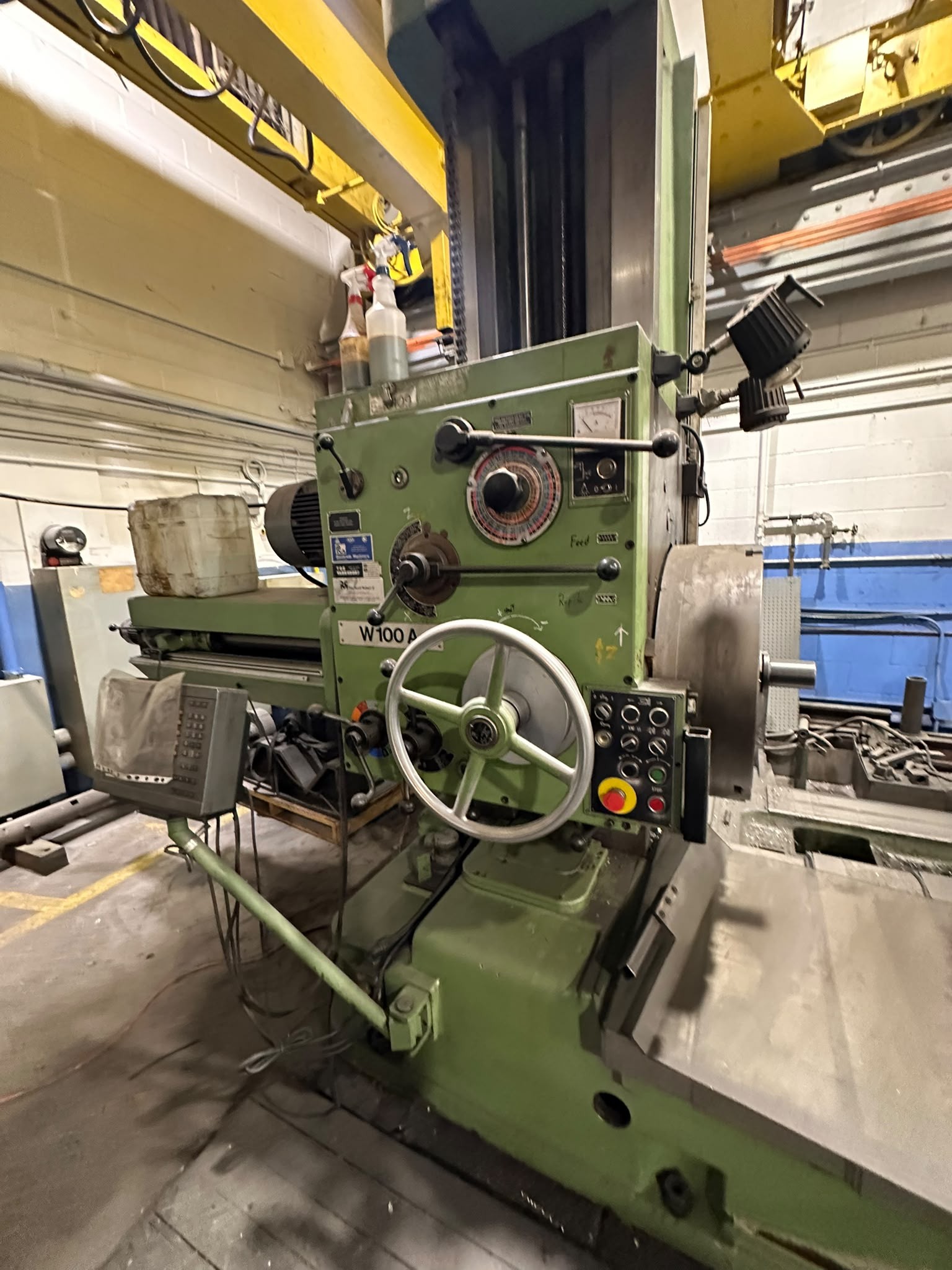

Tos W100 A
Horizontal Boring Mill
New 1997

Specifications:

Diameter of working spindle:
Travel X-axis
Travel Y-axis:
Travel Z-axis:
Travel W-axis:
Spindle speed:
Spindle taper:
Rapid traverse:
Rotary Table size:
Weight capacity:
Main motor:
Dimension of machine:

4"
63"
44"
49"
35"
71 - 1120 RPM
ISO 50
110 IPM
49" x 49"
6,620 Lbs.
14 HP
264.1” (L) x 135” (W) x 118” (H)

Equipped With:

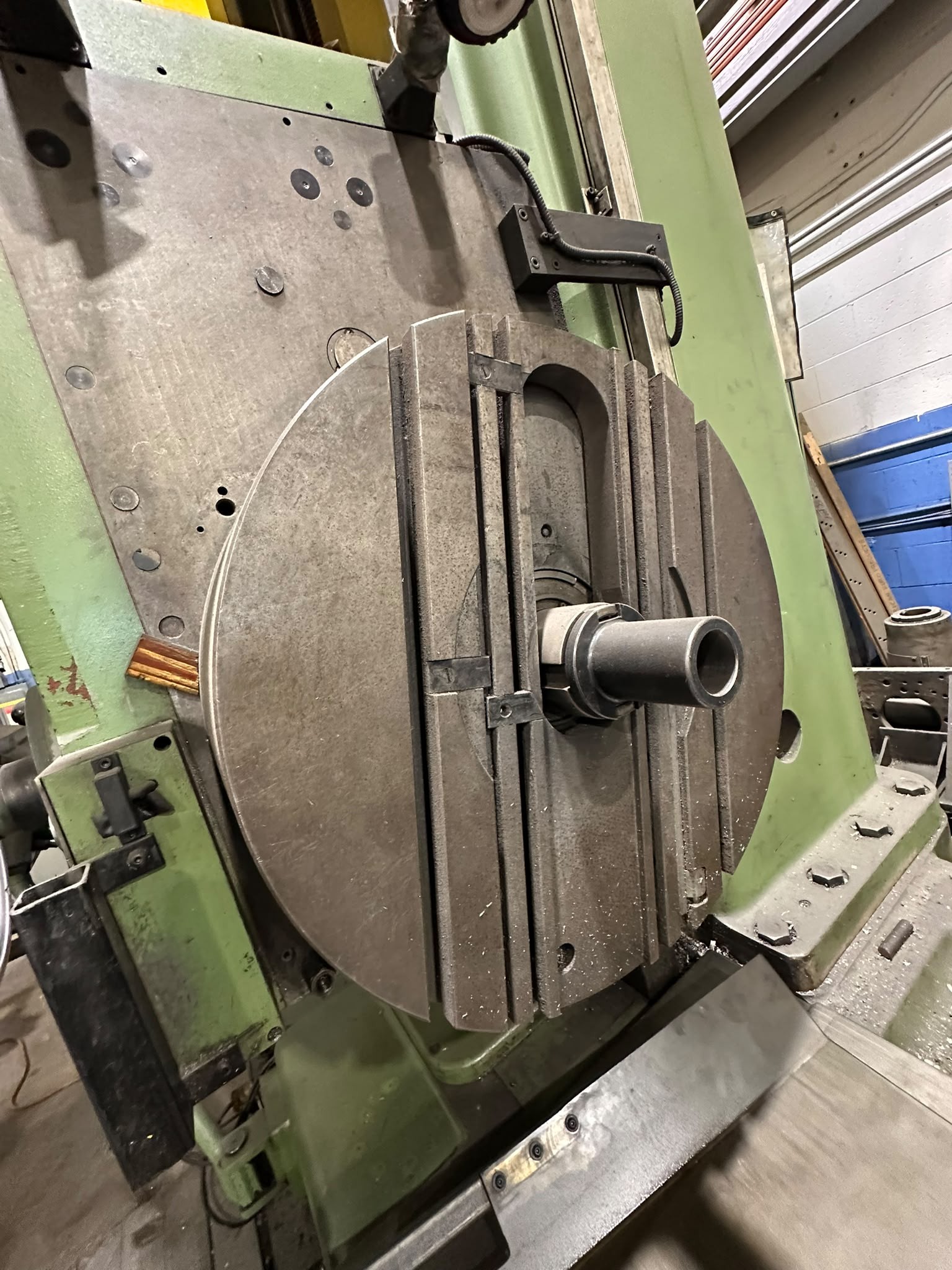

24 Inch Facing Head With Maximum Face Milling Diameter 35.5”

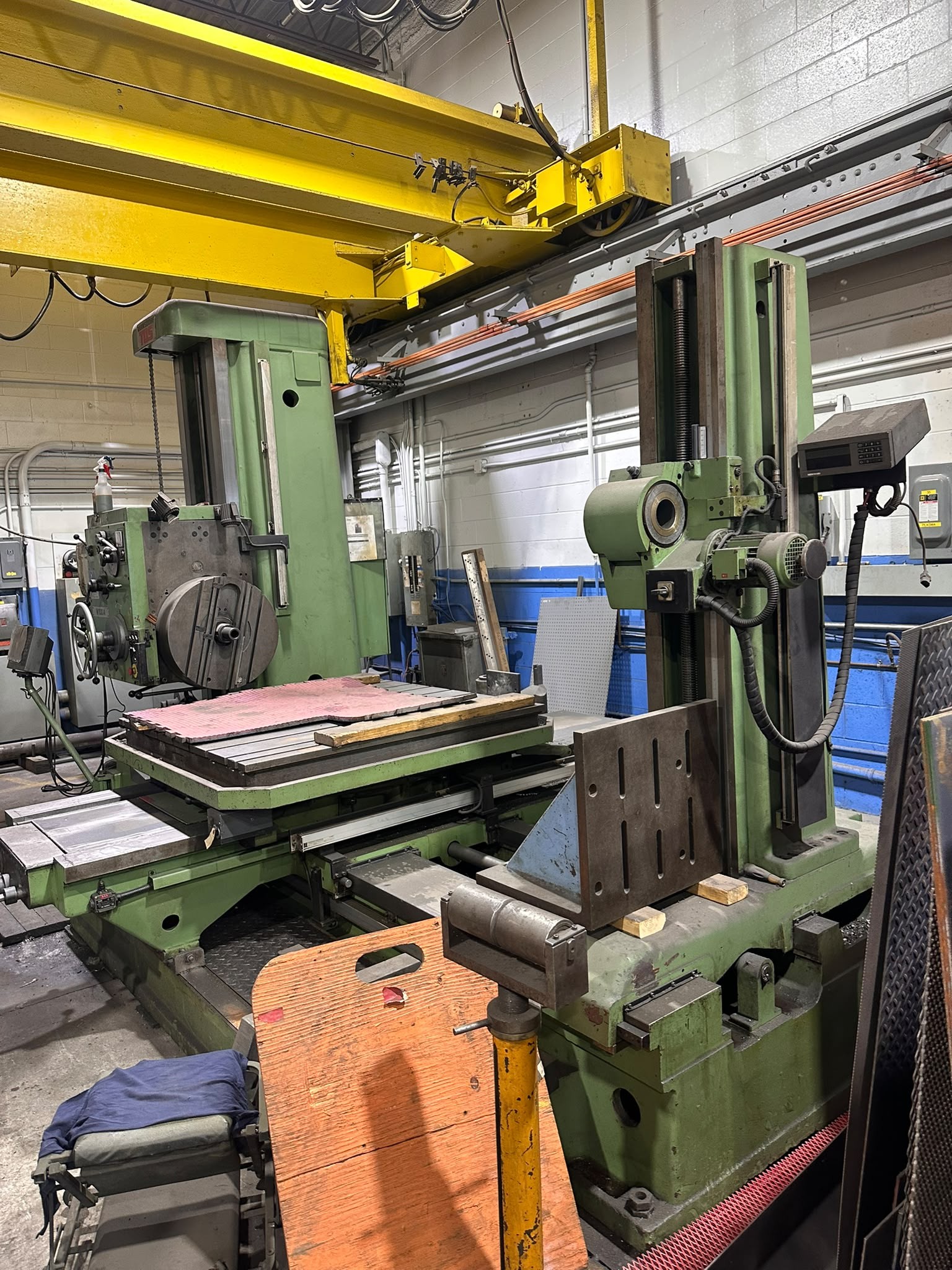

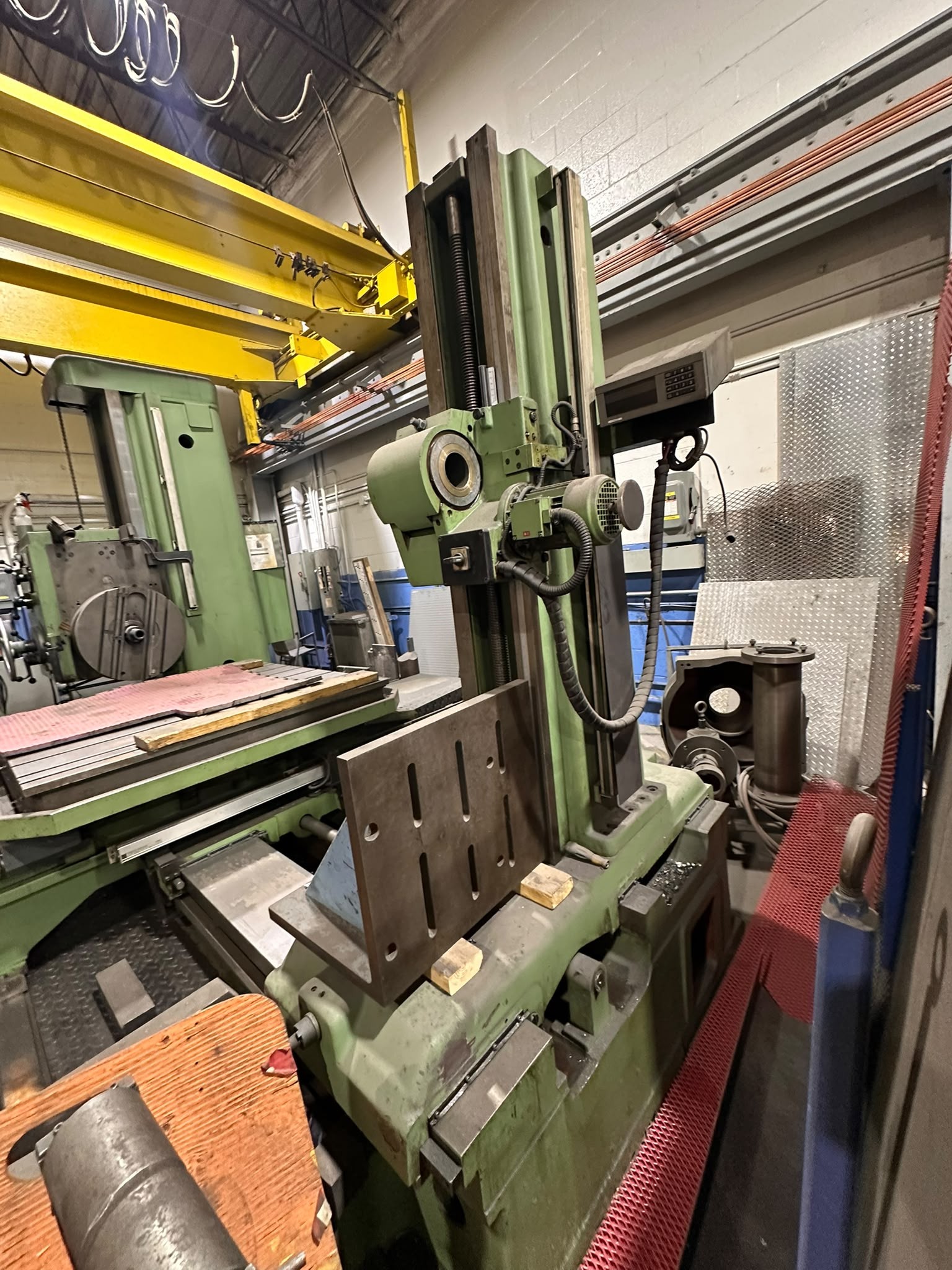

Tail Stock

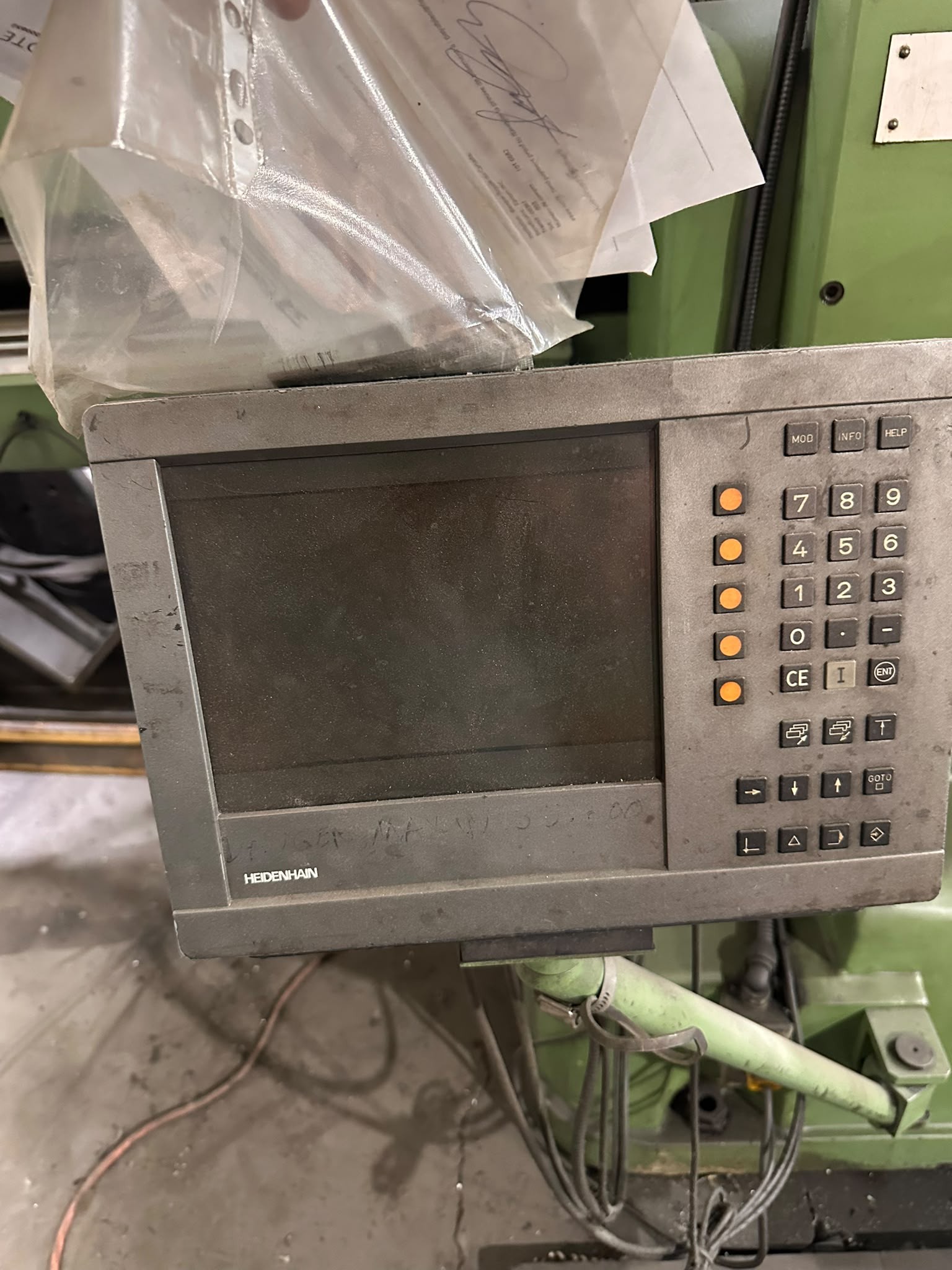

Built In Rotary Table with Rotary Encoder and 4 x 90 Optical Readout

Click for Video Click Here to View Video

Tos W100A-1997-1.jpg (123017 bytes) Tos W100A-1997-2.jpg (172593 bytes)
Tos W100A-1997-3.jpg (145551 bytes) Tos W100A-1997-4.jpg (147352 bytes)
Tos W100A-1997-5.jpg (146597 bytes) Tos W100A-1997-6.jpg (161554 bytes)
Tos W100A-1997-7.jpg (85222 bytes) Tos W100A-1997-8.jpg (167772 bytes)
Tos W100A-1997-9.jpg (143199 bytes) Tos W100A-1997-10.jpg (134553 bytes)
Tos W100A-1997-11.jpg (121447 bytes) Tos W100A-1997-12.jpg (133730 bytes)
