TOS WHN 13.8 CNC Table Type Horizontal Boring Mill
Heidenhain CNC Control, Year 1997
Specifications:

Travel distance X-axis: 137.8“
Travel distance Y-axis: 98“
Travel distance Z-axis: 47.2“
Travel distance W-Axis 31.5"
Table load: 26,400 Lbs. (12,000 kg)
Spindle speed (max.): 0 - 1,600 rpm
Table length: 70.9“
Table width: 86.6“
Spindle Diameter 5.1" (130 mm)
Spindle Taper No. ISO 50
Electrics: 380v/3Ph/60hz
Main Motor 34 kW (45 HP)

 137.8"
98"
47.2"
31.5"
26,400 Lbs. (12,000 kg)
0 - 1,600 rpm
70.9"
86.6"
5.1" (130 mm)
No. ISO 50
380v/3Ph/60hz
34 kW (45 HP)
Equipped With:

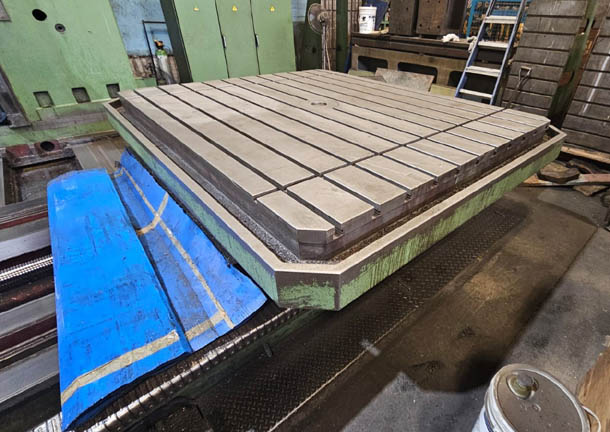

360 T-Slotted Rotary Table
Hand Pendant
Coolant System
Work Light

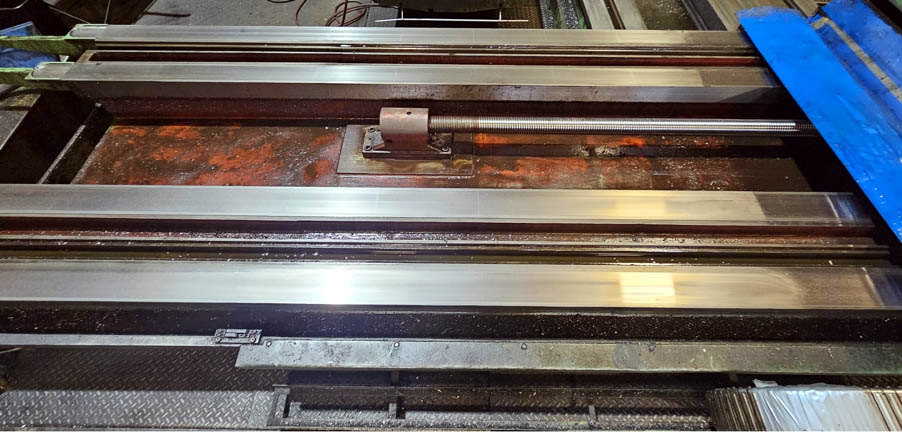

Hardened Ways

Technical details subject to error
