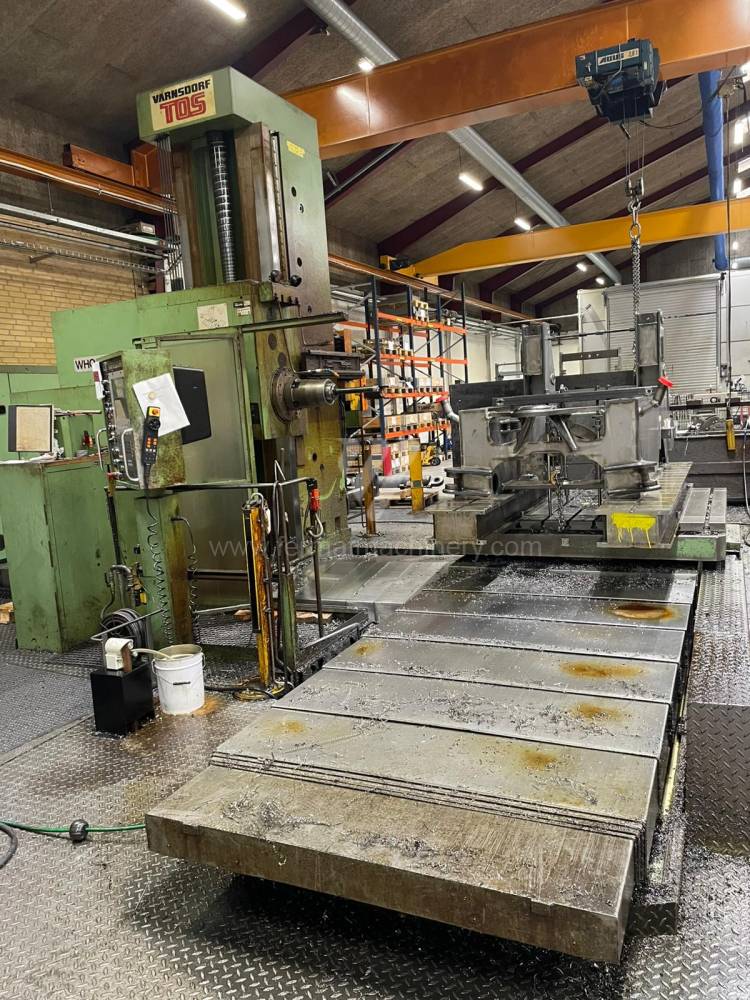

TOS WHQ 13.8 CNC Table Type Horizontal Boring Mill

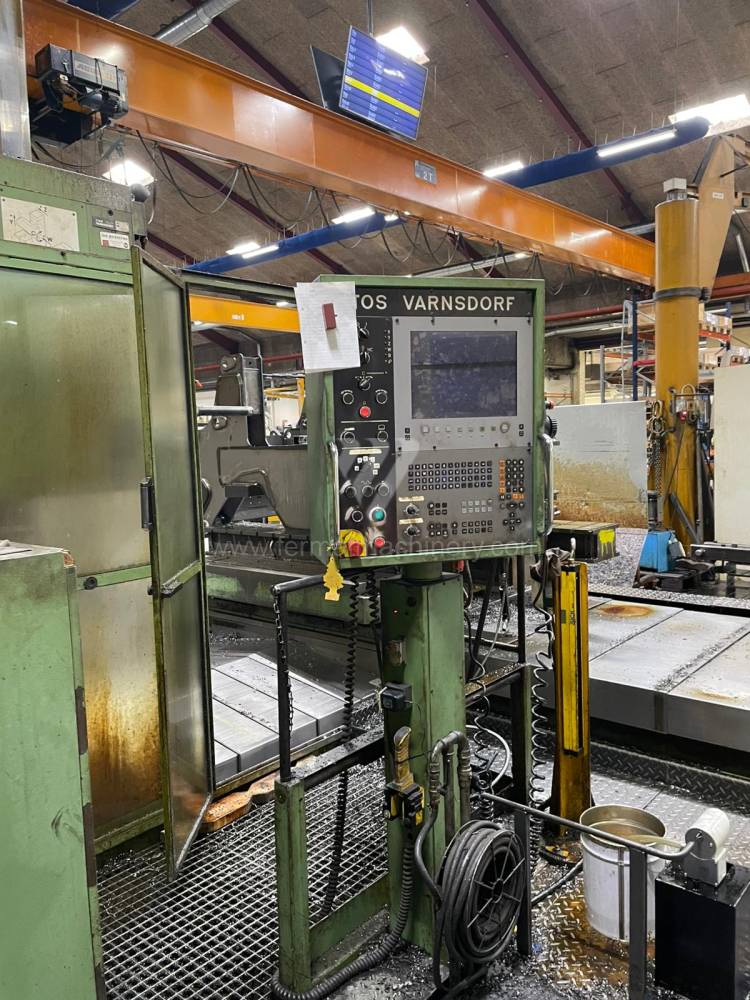

Heidenhain TNC426, Year 1997
Specifications:

Travel distance X-axis: 140“ (3,500 mm)
Travel distance Y-axis: 75“ (2,000 mm)
Travel distance Z-axis: 49.2“ (1,250 mm)
Travel distance W-Axis 31.5" (800 mm)
Table load: 26,400 Lbs. (12,000 kg)
Spindle speed (max.): 0 - 1,500 rpm
Table length: 72“ (1,800 mm)
Table width: 63“ (1,600 mm)
Automatic tool chnager: 60 pos
Spindle Diameter 5.1" (130 mm)
Spindle Taper No. 50
Through spindle coolant: No
Main Motor 34 kW (45 HP)
Technical details subject to error

Equipped With:
Handwheel
Tool Holders
Spindle Support
