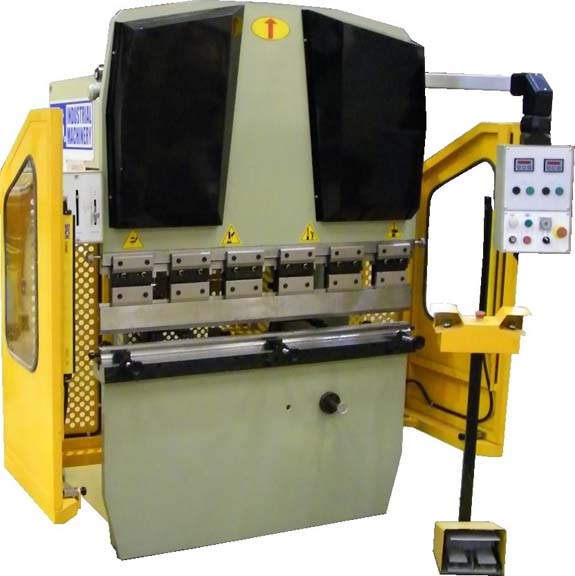

ONE (1) NEW U.S. INDUSTRIAL 22 TON X 4’ HYDRAULIC PRESSBRAKE
Model Number: USHB22-4S

STANDARD EQUIPMENT: (All of the following comes with the machine)
• Power Front Operated Back Gauge, motorized with fine adjustment handwheel
• Power Ram Depth Control, motorized with fine adjustment handwheel
• Digital Displays for backgauge position and ram position
• All Steel Construction
• Sick 2000 Light Curtain
• Ram accepts standard American Tang tooling, " x 5/8"
• Space between Ram Tool Clamps allows for deep box bending
• Bed has slot for standard American Tang tooling
• Bed also has capture clamps for tooling without tang
• Free Gooseneck Punch and multi-opening Die for up to 90 forming in 10 gauge mild steel

*(see note on page 2)

SPECIFICATIONS:

• Working Pressure 22 Tons • Motor Horsepower 7.5 HP
• Length of Working Table 51.9" • Rapid Ram Travel Speed 2.4"/Sec
• Distance Between Housings 40.1" • Backgauge Travel 24"
• Throat Depth 7.8" • Rapid Ram Retreat Speed 2.0"/Sec
• Stroke Adjustment of Ram 2.75" • Motor Horsepower 7.5 HP
• Pressing Speed Dependent on Tool Load • Hydraulic Oil Capacity 21 Gal
• Ram Travel 3.14" • Net Weight 4,400 lbs.
• Open Height 9.64" • Length 73"
• Bed Height 40" • Width 56"
• Backgauge Travel 24" • Height 77"



PRICE………F.O.B. MEMPHIS 16,985.00
(This non-CNC Press brake is normally in stock.  Call to check delivery.)



AVAILABLE OPTIONS:

2-Axis Simple CNC Back Gauge and Ram Control Included

Controls BOTH bend angle and backgauge position. Comes with 6" LCD touch screen. Code programming only. 20 bends per program. Control can store thousands of programs with USB port.

CNC 2-Axis Color Graphic Control and Light Curtain Upgrade: $5,995.00

Controls BOTH Bend Angle and Backgauge Position. Comes with 6" LCD touch screen. Code And Graphic programming included. Graphic allows 10 bends per program/cross-section.
Controls features a tool library, Metric/inch switchable, Auto bend sequence, Auto retract of Backgauge, Spread length, Interference bend alert, Calculated bend allowance, Programmable
ram dwell and much more. Control stores thousands of programs with USB Port, Ethernet and RS232 for program backup.

• Training in our Memphis, TN Facility No Charge
• Training at customer site, more than 300 miles from Memphis: $3,995.00

(If outside continental USA, please call for quote.)



Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose. There is NO warranty on these items.
