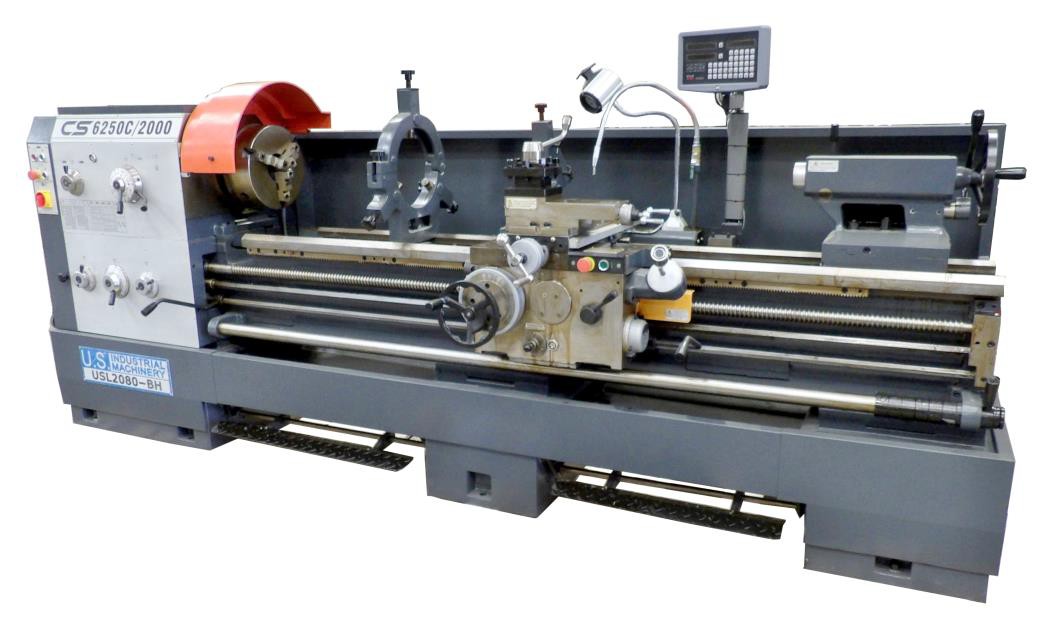

ONE (1) NEW U.S. INDUSTRIAL 20" X 80" PRECISION GEARED HEAD ENGINE LATHE
Model USL2080CX

This precision, heavy duty geared head engine lathe incorporates hardened and precision ground bedways on longitudinal and cross ways, and wide, precision ground gears. It has a gap-bed design, feed-rod/lead screw safety interlock system, weight bearing tailstock and forward/reverse levers at both the aprons and the head stock.

As with all U.S. Industrial lathes, it comes with a plethora of standard accessories, 3 and 4-jaw chucks, follower and steady rests, work lamp, a coolant system and an operator/service manual. This model available without digital readout and taper attachment, or you can add from option list.



Standard Equipment: (Items below are INCLUDED with the machine):

• 10" 3-jaw chuck. Universal, self-centering
• 12" 4-jaw independent chuck
• Steady rest
• Foot brake with microswitch and brake
• 17" Face Plate & Dog Plate
• Follow rest
• 4-way toolpost
• Micrometer carriage stop
• Thread Dial
• Inch/Metric reading dials on Apron, Cross-Slide and, compound
Safety chuck shield
• Work lamp
• Taper attachment (installed)
• Flood coolant system
• Large spindle bore to pass 3"
• Full length backsplash
• Manual with test certificate
• Slide out chip pan



Specifications and important information:

Swing Over Bed
Swing Over Cross-Slide
Swing Over Gap
Gap Length
Maximum Turning Length
Spindle Bore
Spindle Mount Type
15 Spindle Speeds
66 Longitudinal Feeds
66 Cross Feeds
66 Metric Threads
66 Inch Threads
33 Module Threads
33 Diametral Pitch Threads
Compound Rest Travel
Cross-Slide Travel
Tailstock Taper
Tailstock Spindle Travel
Main Motor HP
Coolant Pump Motor
Lathe Gross Weight
Crated Dimensions
19.68"
12.79"
24.80"
10.23"
78.74"
3.15"
D1-8 Camlock
24 to 1600 RPM
.0027 to .15 IPR
.00135 to .075 IPR
0.5 to 28 mm
1 to 56 TPI
0.5 to 3.5mm
8 to 56 DP
5.119"
12"
No. 5 Morse Taper
4.72"
10 HP 220/440, 3 Phase
Fractional HP
5,300 lbs.
140" long, 48" wide, 60" tall

PRICE………………..F.O.B. MEMPHIS……………………………………………$ 19,990.00

AVAILABLE OPTIONS:
Newall 2-Axis Digital Readout, Installed..............$3,995.00
Taper Attachment, installed (check delivery).........1,995.00 (check delivery time)
Quick Change Toolpost Kit with Holders………       995.00
Iscar Cutting Tool Package……………………..   3,295.00
