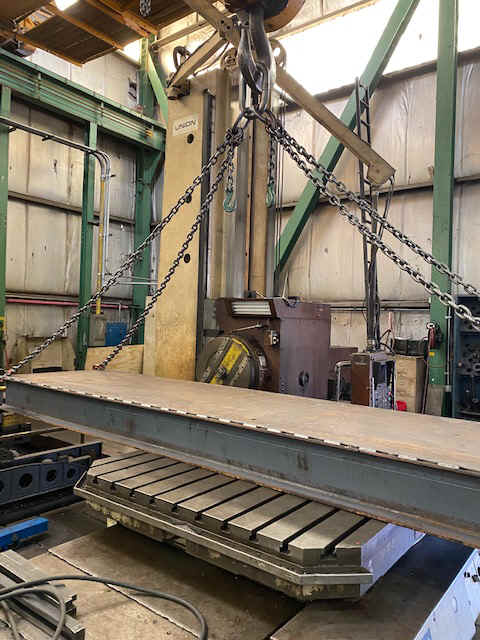

Union BFP130 5.12" CNC Floor Type Horizontal
Boring Mill
|
| Specifications: | |
| Spindle | 5.1" (130 mm) |
| Taper | ISO 50 |
| Spindle Speeds | 5 - 1000 RPM |
| In Feeding Rotary Table | 86.6" x 86.6" |
| Table
In feed Table Feeds, longitudinal Table Rapids, longitudinal Rotary, Feeds @41.14" Dia. Rotary, Rapids @ 41.14" Dia. Table Weight Capacity Number T-Slots T-Slot Center Distance Number Cross Slots Center Hole Diameter Center Hole Depth Table Height Approximate Overall Table Weight Overall Dimensions |
59.05" 05 - 6.2 IPM 78.11 IPM 058 - 6.2 IPM 78.74" 39,600 LBS 9 9.84" 2 11.81" 39" 37.4" 25,300 LBS. 157.48" x 103.2" |
| Table Load Capacity | 44,000 LBS. |
| Cross Travel (X-Axis) | 220.5" |
| Vertical Travel (Y-Axis) | 119" |
| Saddle Travel (Z-Axis) | 118.1" |
| Spindle Travel (W-Axis) | 35.4" |
| Column In feed, Z-Axis | 16.5" |
| Rapid Traverse, X & Y Axes | 196.85 IPM |
| Rapid Traverse, Z & W Axes | 118.11 IPM |
| Feeds, All Axes | 98.42 IPM |
| Approx. Overall Weight | 90,000 LBS. |
| Equipped with: | |
| HEIDENHAIN

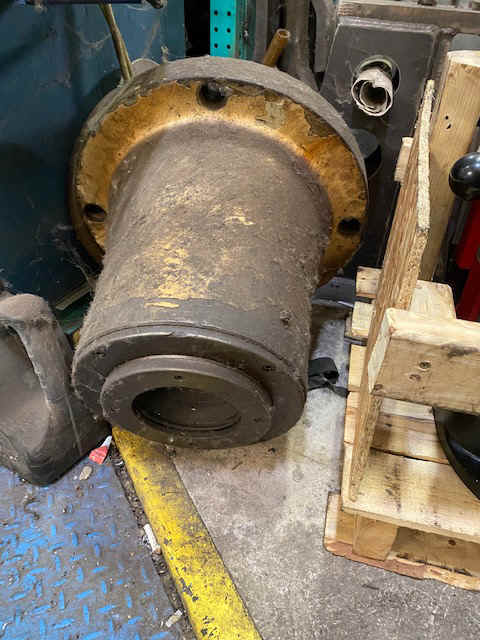

TNC 355 CNC Control Spindle Support TOS In feeding Rotary Table Telescoping Steel Way Covers on X-Axis Independent AC Servo Motor Drives Hardened & Ground Ways Steel Sliding Way Covers 67 HP Spindle Drive Motor New spindle drive in 2020, Spindle motor was rebuilt. "ALL SHIPPING COSTS ARE BUYERS RESPONSIBILITY" |
|
NOTE: An effort has been made to assure the above specifications are accurate, however, it is the sole responsibility of the buyer to confirm the actual model, capacity, attachments, accessories, extras and condition. We urge buyers to inspect all machinery and equipment prior to purchase. Subject to Prior Sale |
|
