WardJet ZX3043-5, 10' x 14' CNC WATERJET CUTTING SYSTEM
NEW May 2015

SPECIFICATIONS
Work Envelope:
Y-AXIS Travel:
X-AXIS Travel:
Z-Axis
Max. Cutting Speed:
Contouring Speed
Max. Traverse Speed:

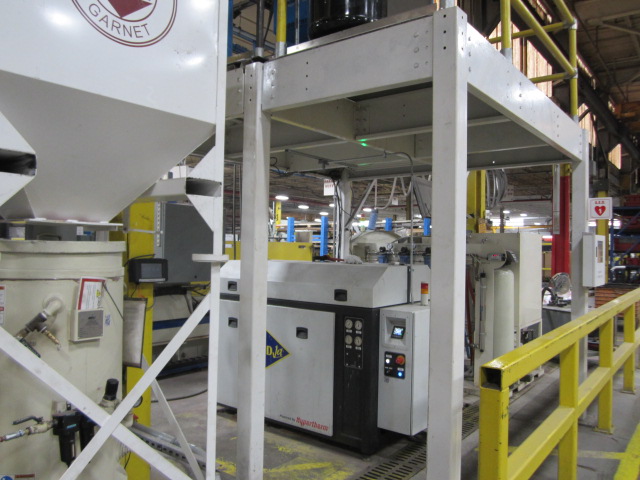

Intensifier Pump (Water Cooled) Output:
Intensifier Pump Motor:
Linear Positioning ACCURACY (+/-) Per Axis:
Repeatability (+/-) Per Axis:
Electrical
10.1' x 14.1'
60"
168"
36"
0.01 in/min - 500
150 IPM
500 IPM
60,000 PSI
50 HP
.003"
.001"
230V/60Hz/3Ph
EQUIPPED WITH
Wardjet CNC Controller with IKUHLU* Software Interface

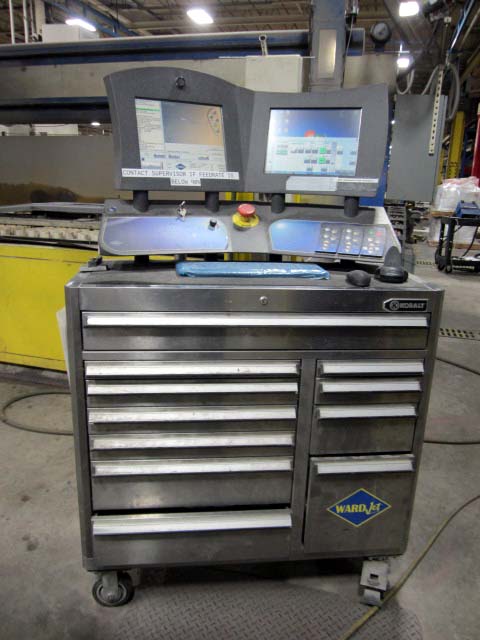

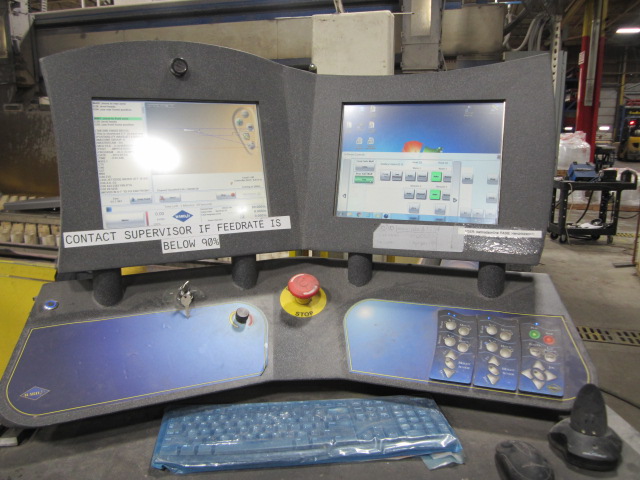

Dual Touch Screen, On Wheeled Work Table
(1) Five Axis Abrasive Cutting Head
(1) Single Axis Abrasive Cutting Head
Abrasive Clog Sensor (Each Head)
Live Remote Programming Camera
Ball screw driven, all axes
Front and Back Automatic SafeWalls™
Light Curtains, front and back

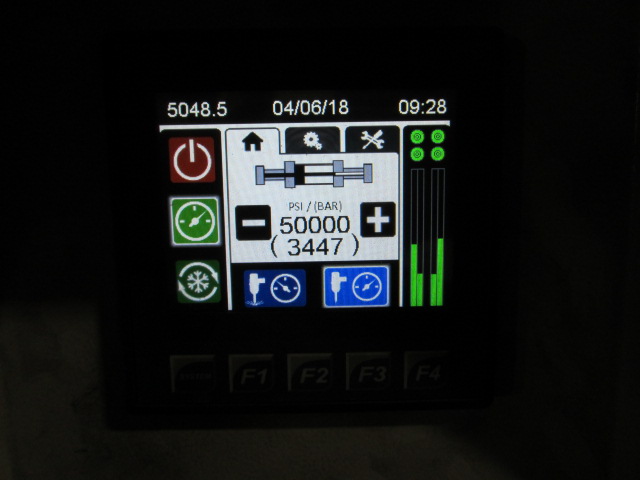

Machine on hours.................................................................................................................... 5048

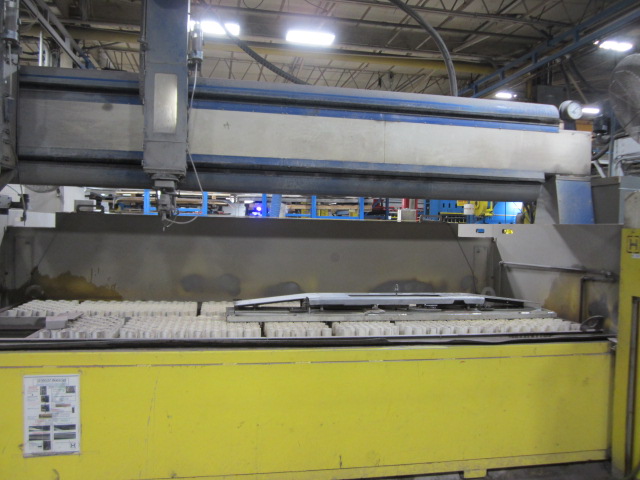

The Z-3043 was named for its cutting envelope of 3 meters by 4.3 meters, which equates to roughly 10 feet by 14 feet. This allows waterjet operators the ability to load three 4x10 sheets or two 6x10 sheets on the Z-3043 at once to increase productivity. The Z-3043 can also grow with your business with options like a 5-axis cutting head (Included on this machine), multiple cutting heads, drills, taps, height sensors, etc. These can be added on as your waterjet business expands.

NOTE:

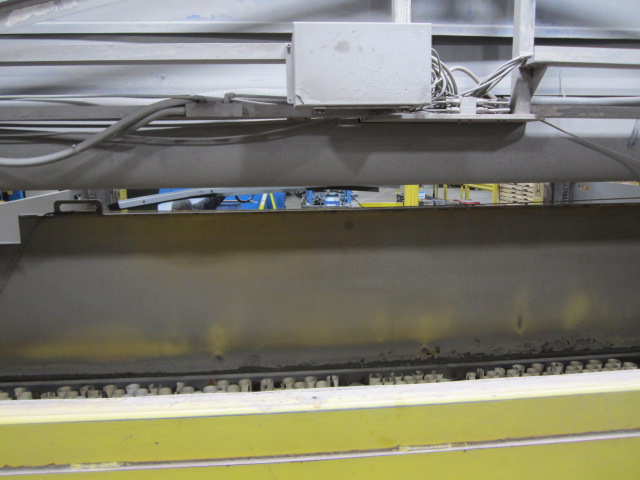

Machine bed is divided by wall so parts are cut while other side is unloaded/loaded. Heads are Independently Operated.

Inspect in Plant, Under Power
Click for Video Click Here to View Video
