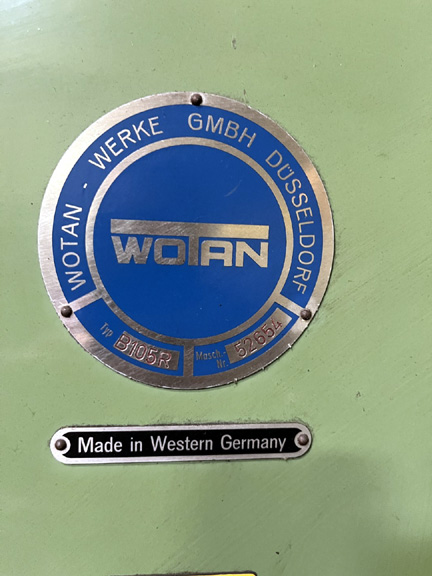

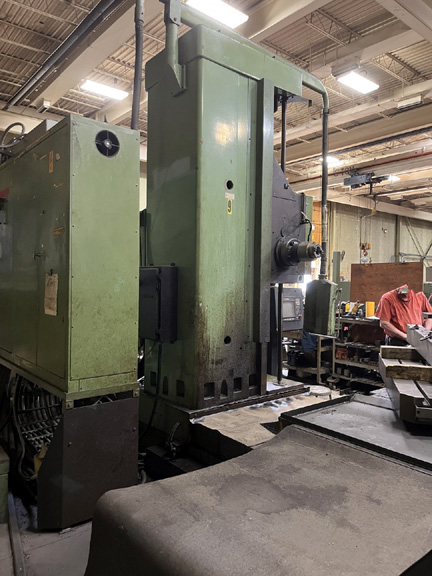

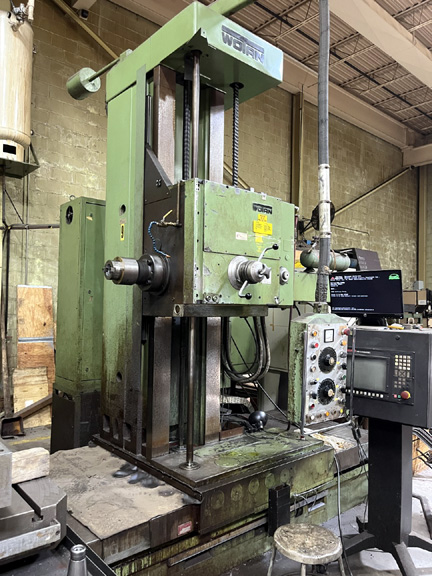

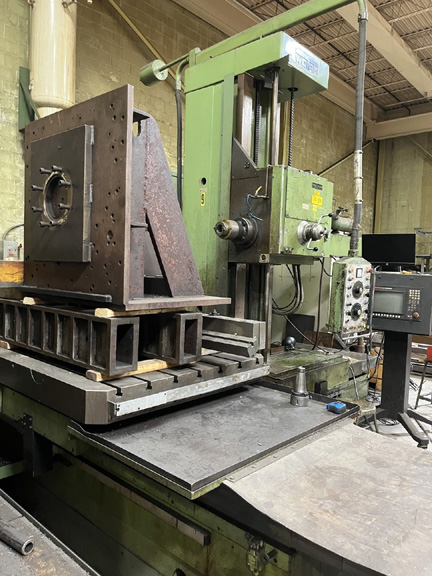

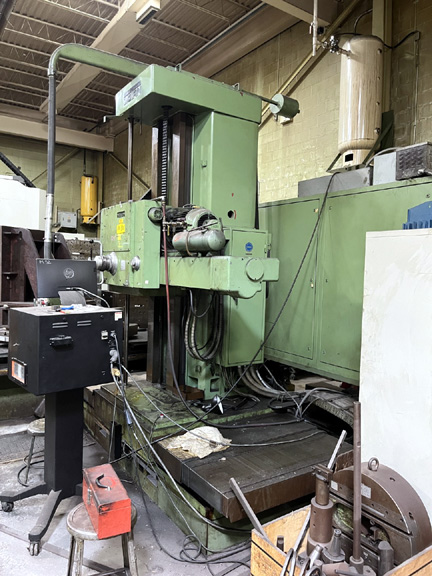

Wotan B105R
Horizontal Boring Mill
New 1980

Specifications:

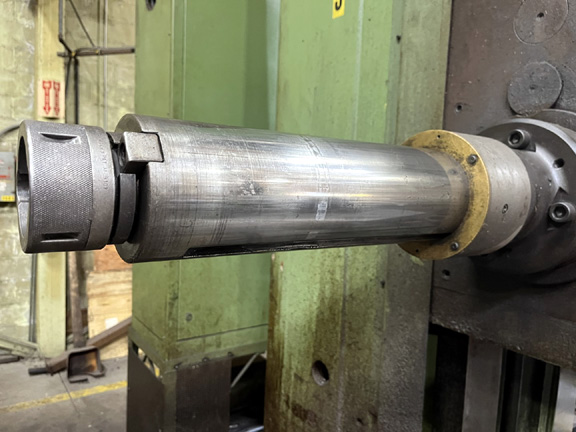

Diameter of working spindle:
Travel X-axis
Travel Y-axis:
Travel Z-axis:
Travel W-axis:
Spindle speed:
Spindle taper:
Rotary Table size:
Weight capacity:
Main motor:
Approx. Dimension of machine:
Approx. Weight:

4.75"
85.6"
63"
48.3"
23.5"
1 - 1000 RPM
50
47" x 59"
3,300 Lbs.
20 HP
206" (L) x 192" (W) x 150"(H)
20,000

24 Inch Facing Head With Maximum Face Milling Diameter 35.5"

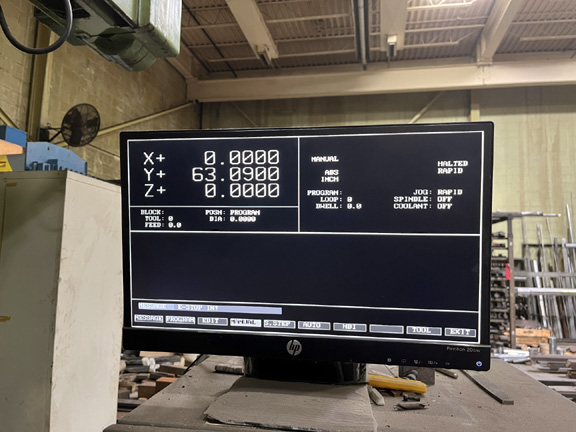

3 Axis Digital Read Out

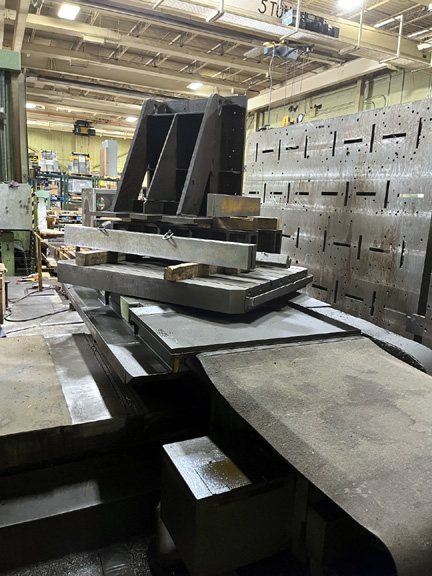

Built In Rotary Table

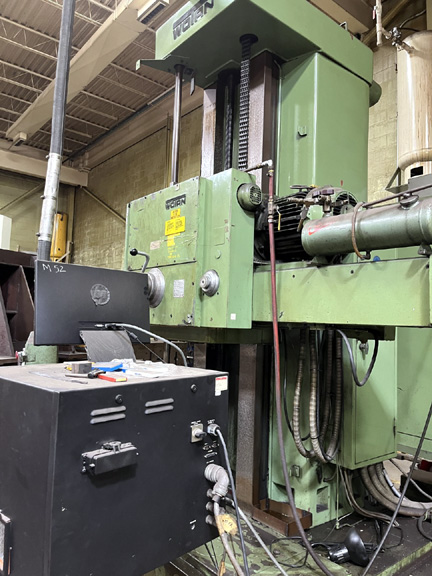

Pendant Control
Misc. Tooling
