Specifications:
Cutting Capacity – Rounds:----------------------16"
– Squares:---------------------16" x 16"
Length:-----------------------------------------0" –212
Blade Size:-------------------------------------1 -1/2" x 0.050 x 15'
Blade Speed:------------------------------------50 - 295 ft/Min.
Table Height:-----------------------------------31.5"
Table Load:-------------------------------------5,500 Lbs
Motor – Blade:----------------------------------7.5 HP 3/60
Motor – Hydraulic Pump:-------------------------2 HP 3/60
Overall Dimensions (Approx.):-------------------125" x 165" x 66" H
Weight (Est.):----------------------------------4,400 Lbs.
Equipped With:
Catalogue
Information, Personal inspection is recommended
Automatic Shuttle Feed

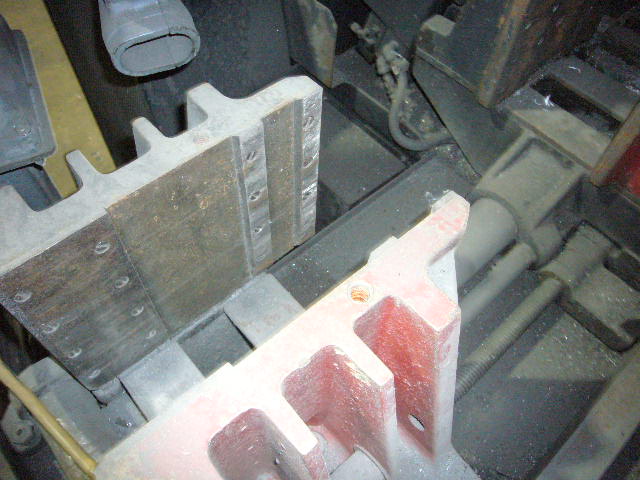

Two Hydraulic Shuttle Vises, Variable Blade Speed Control
9 Times Multi Index
Motion Detector
Back Gauge Counter
Parts Counter
Variable Blade Speed
Variable Downfeed Control
Coolant Pump & Piping
Chip Conveyor
PRICE:
AS IS, Atlanta, Ga-----------------------$12,950 |
