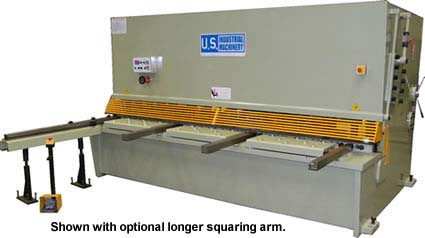

ONE (1) NEW U.S. INDUSTRIAL 10’ X 1/4" HYDRAULIC SHEAR, Model Number: US1025

SPECIFICATIONS:
• Sheet Size: 126"
• Shearing Capacity: 1/4" Mild Steel @ 65,000 PSI
• Shear Angle: 1 Degree 30’
• No Load Strokes: 14
• Throat Depth: 5.5"
• Adjustment Range of Back Gauge: 0.75" - 36"
• Hydraulic Oil Capacity: 71 Gal.
• Main Motor: 15 HP
• Net Weight: 15,550 lbs.
• Dimensions (L x W x H): 157" x 63" x 63"

STANDARD EQUIPMENT: (All of the following comes with the machine)
• Squaring Arm • (3) Bolt on table segments
• High Carbon, High Chrome Shear Blades • Hold-downs faced w/anti-mar neoprene
• Ball Transfers on Each Table Segment • Swing Beam Design
• Manual Quick Change Blade Gap Adj. • Pressure Sensing Hold Downs
• Squaring Arm, 39.5" from blade to end • Electric Stroke Adjustment
• Stroke Counter • Operator Control Console
• Front-controlled Power Back Gauge • Shadow Lighting
• Blade Guard, Micro Switch Protected • Low Noise Gear Pump
• Hydraulic, Electrical Overload Protection • Support Arms Included
• Automatic Swing-up on Back Gauge

AVAILABLE OPTIONS:

• 3-Axis CNC Programmable Back Gauge
• Pneumatic Sheet Support
• Material Support/Drop Chute
• 6-Foot Squaring Arm
• 8-Foot Squaring Arm
• 10-Foot Squaring Arm
• 48" Back Gauge; no swing up
• Training in Memphis, TN Showroom
• Training at customer site, less than 300 miles from Memphis:
• Training at customer site, more than 300 miles from Memphis:

 $4,990.00
$5,990.00
$1,295.00
$2,495.00
$2,795.00
$2,995.00
$2,995.00
No Charge
$2,995.00
$3,995.00
*Touch-screen operated. Controls back gauge depth, blade gap and stroke length.
    It has a 200 program storage capacity, each program up to 20 steps, and it can be operated in manual or automatic mode.
PRICE, F.O.B. MEMPHIS $35,990.00
Front operated power Backgauge with digital readout Included
Squaring Arm - 3' Included
Support Arms, Ball Transfer Table Included
Quick blade gap adjustment Included
