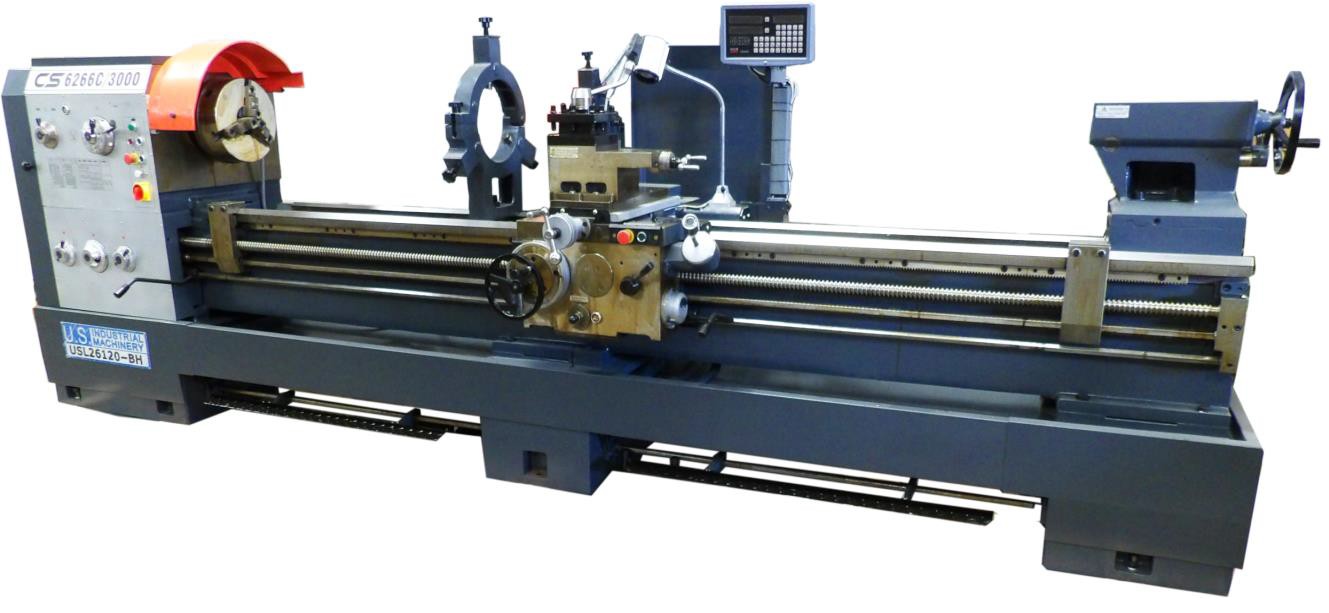

ONE (1) NEW U.S. INDUSTRIAL 26" X 120" PRECISION GEARED HEAD ENGINE LATHE
Model USL26120BH-KIT
ONE (1) NEW U.S. INDUSTRIAL 26" X 120" PRECISION
GEARED HEAD ENGINE LATHE
Model USL26120BH-KIT
This precision, heavy duty geared head engine lathe incorporates hardened and precision ground bedways on longitudinal and cross ways, and wide, precision ground gears. It has a gap-bed design, feed-rod/lead screw safety interlock system, weight bearing tailstock and forward/reverse levers at both the aprons and the head stock.
As with all U.S. Industrial lathes, it comes with a plethora of standard accessories, 3 and 4-jaw chucks, follower and steady rests, work lamp, a coolant system and an operator/service manual.
Standard Equipment: (Items below are INCLUDED with the machine): |
| • 12" 3-jaw chuck. Universal,
self-centering with American standard tongue and groove top jaws • 16" 4-jaw independent chuck • 25" Face Plate • Steady rest • Follow rest • Foot brake with microswitch and brake • 17" Face Plate & Dog Plate • Follow rest • 4-way toolpost • 4-way rapid travel • Micrometer carriage stop • Thread Dial • Safety chuck shield • Work lamp • Taper attachment (installed) • Flood coolant system • Large spindle bore to pass 4" • Traveling backsplash behind apron • Manual with test certificate • Slide out chip pan • Sino 2-axis digital readout inch/metric cable track wiring protection • Inch/Metric reading dials on Apron, Cross-Slide and, compound |
Specifications and important information: |
|
| Swing Over Bed
Swing Over Cross-Slide Swing Over Gap Gap Length Maximum Workpiece Length with 3-Jaw Chuck Maximum Turning Length Spindle Bore Spindle Mount Type 15 Spindle Speeds 66 Longitudinal Feeds 65 Cross Feeds 22 Metric Threads 25 Inch Threads 18 Module Threads 24 Diametral Pitch Threads Compound Rest Travel Cross-Slide Travel Tailstock Taper Tailstock Spindle Travel Tailstock Spindle diameter Main Motor HP Rapid Feed Motor Coolant Pump Motor Lathe Gross Weight Crated Dimensions |
25.68" 16.53" 34.25" 9.44" 118" 116" 4.134" D1-11 Camlock 36 to 1600 RPM .0023 to .0937 IPR .0011 to .00404 IPR 1 to 14 mm 2 to 28 TPI 0.5 to 7mm 4 to 56 DP 5.709" 12.205" No. 5 Morse Taper 5.906" 2.953" 12 HP 220/440, 3 Phase 0.33 HP 60 watts, 5.5 gallons per minute 8,500 lbs. 183" long, 40" wide, 55" tall |
PRICE………………..F.O.B. MEMPHIS……………………………………………$ 44,990.00
AVAILABLE OPTIONS:
