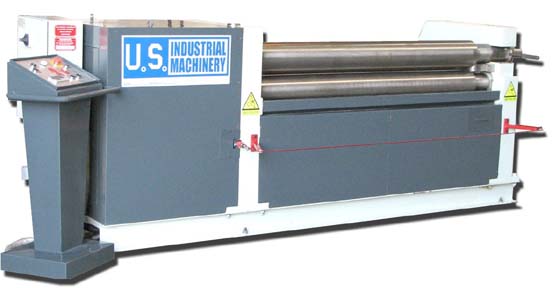

ONE (1) NEW U.S. INDUSTRIAL 5’ x 1/4" INITIAL PINCH PLATE ROLL
Model Number: USR525

STANDARD EQUIPMENT: (All of the following comes with the machine)
• Powered Roll Adjustment and Manual Precision Pinch Roll Adjustment
• Top Roll Manual Swingout
• Emergency Trip Line
• Pedestal Control
• Quick Roll Adjustment
• Roll Position Indicators
• Crowned Rolls
• Low Voltage Push Button Controls

SPECIFICATIONS:
• Capacity: 5‘ x 1/4" Mild Steel @ 65000 PSI
• Pre-Bend Capacity: 1/4" Mild Steel @ 65000 PSI
• Roll Diameter: 6.7" On All 3 Rolls
• Speed: 12. 5 FPM
• Main Drive Motor: 5.5 HP Reduction Gear Drive
• Adjustment Motor: 3 HP
• Machine Length: 127"
• Machine Width: 54"
• Machine Height: 44"
• NetWeight: 4,150 lbs.
• Voltage: 220/440 Volts, 3 Phase

*specifications are subject to change without notice

PRICE…………………..…..……….F.O.B. MEMPHIS……………………....$13,990.00

AVAILABLE OPTIONS:

• Hardened Rolls: $ 995.00
• Cone Rolling Attachment: $ 695.00
• LED ReadoutWith Memory: $1,995.00
